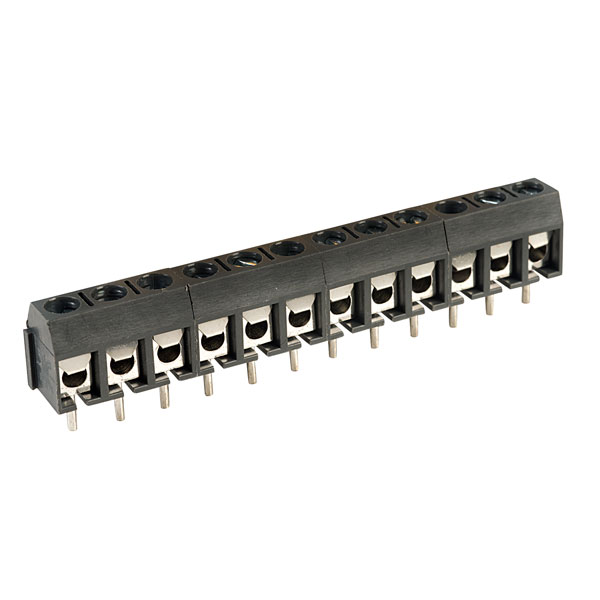

Metway 650TDS12 Twelve Pole 16A PCB Terminal Block

Metway
Order Code:

21-0120

Brand: Metway MPN: 650TDS12

Discontinued


Low profile side entry interlocking terminal block with 12 poles, 5mm pitch, from the Metway 650TDS series.


  • Current rating 16A
  • Voltage rating 250V
  • Screw termination
  • PCB mounting
  • 1.5mm² wire size
  • Tin plated brass contact material
  • PBT housing material, grey colour
  • +120°C temperature limit
  • Fitted with wire protectors
  • Nickel plated bronze wire protectors
  • M2.5 steel screws
  • UL94V0 flame retardant moulding
  • Manufacturer's part 650TDS12
Colour Black
Current Rating 16A
Mounting Direction Vertical
Mounting Type Through Hole
No. of Ways 12
Pitch 5mm
Wire Gauge 1.5mm²
Wire Gauge (AWG) 16AWG
Wire Termination Screw, Wire Protector
