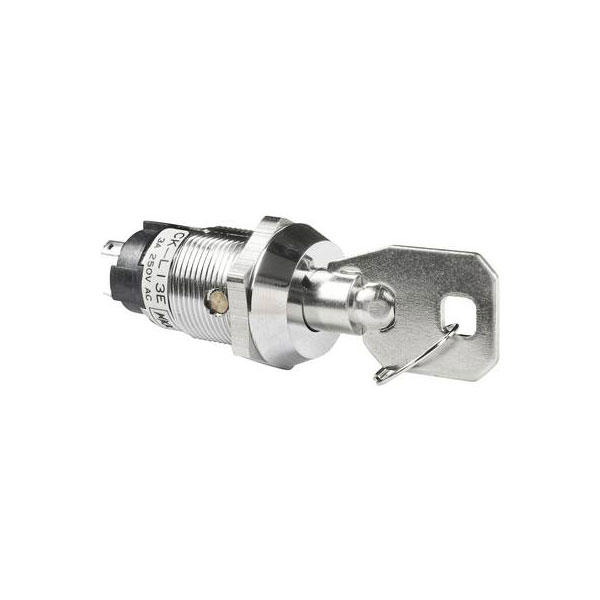

NKK CKL13EFW01 3A High Security Key Switch SBDT on-off-on 250VAC 19mm Bushing
Standard range
Order Code:
Brand:
NKK Switches
MPN: CKL13EFW01 EAN-13: 2050001258229 55-6122
- RoHS Compliant
- Country of Origin:
- Free UK shipping available
- View Full Product Range (3)
| Qty | Was | Unit Price (Ex VAT) |
|---|---|---|
| 1+ | £12.33 | £12.18 |
Price per unit Ex VAT
High security key switch from NKK Switches.
- Casing/button colour: Silver
- Connection (components): Solder tag
- Contact type: 1 maker
- Functions (switches): latch/0/latch
- Key removal position: -/Off/-
- Material (LoV): Metal
- Max. temperature: 70 °C
- Min. temperature: -25 °C
- Mounting diameter: 19 mm
- Switch position: 1 x On/Off/On
- Switch postions: 3
- Switch type (category): Key switch
- Switching angle: 2 x 45°
- Switching current (max.): 3A
- Switching voltage: 250V
- Manufacturer's part: CKL13EFW01
| Type | Keyswitch |
|---|---|
| Action | On-off-on |
| Contact Configuration | SPDT |
| Illumination Colour(s) | N/A |
| Illumination Type | None |
| Max. Current | 3A |
