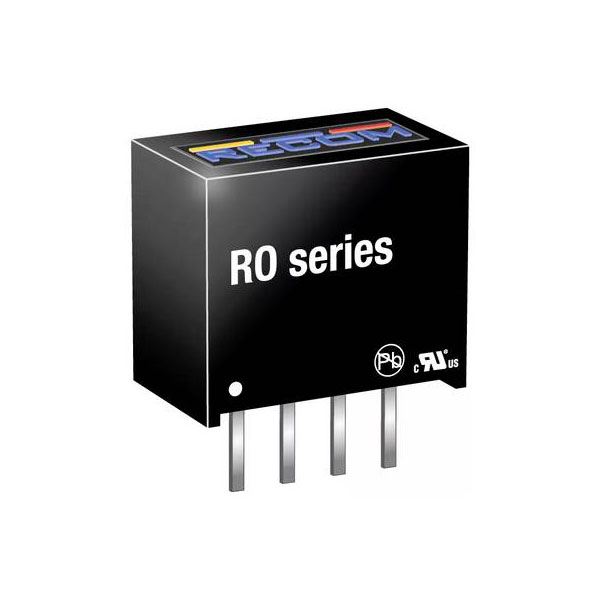

Recom 10000613 RO-2424S 1W DC/DC Converter 24V In 24V Out

Image Representative of Range

Recom 10000613 RO-2424S 1W DC/DC Converter 24V In 24V Out

Recom
Standard range
Order Code:

49-7125

Brand: Recom MPN: RO-2424S EAN-13: 2050001795540
Qty Unit Price (Ex VAT)
1+ £6.37
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
37 in Stock, despatched in 4 days

A Recom unregulated DC/DC converter from the RO series. This single output converter is supplied in the standard SIP4 package style. The converter has been designed to offer exceptionally high efficiency at low loads, an extended operating temperature range and low deviation (10% to 100% load). It is ideal for use in applications with a restricted energy budget, and industrial applications where a high efficiency level is required.


  • Accuracy: 1%
  • Grid pitch: 2.54mm
  • Insulation voltage: 1000V DC
  • Product Specifications: Ripple: (20MHz bandwidth) 100mVpp
  • Output current: 42A
  • Input voltage: 24V
  • Output voltage: 24V
  • Specification: SIP4
  • Efficiency: 80%
  • Operating Temperature from -40°C to +85°C
  • Dimensions: 11.5(L) x 6.0(W)mm
  • Type: DC to DC Converter RO Series
  • Manufacturer's part: RO-2424S
Mounting Style SIP-4
Number of Outputs 1
Output Current Max 42mA
Output Current Min N/A
Output Voltage Max 24V
Output Voltage Min N/A
Power Rating 1W
Supply Voltage Range 24V
Temperature Range -40 to +85°C
