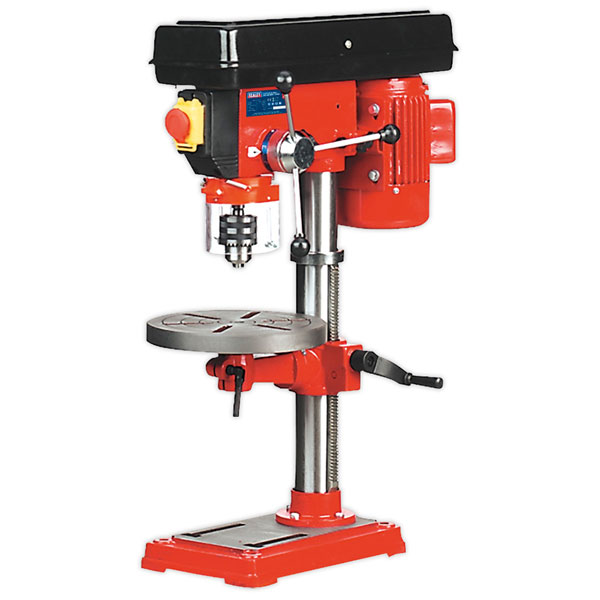

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection.
Model No GDM50B Base Size: 345 x 215mm Collar Diameter: Ø55mm Column Diameter: Ø60mm Drilling Capacity (Chuck Size): 16mm Maximum Distance Spindle to Base: 450mm Maximum Distance Spindle to Table: 300mm Motor Power (Start): 220W(370W) Nett Weight: 32kg Number of Speeds: 5 Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm Overall Height: 750mm Speed Range: 460-2890rpm Spindle Centre to Column: 127mm Spindle Nose Taper: MT2 Spindle Travel: 60mm Supply: 230V Swing: 254mm Working Base Surface Size: 160 x 180mm Working Table Surface Size: Ø248mm
Type
Bench pillar drill
Power
370W
Lifetime Warranty
No
Speeds
5
