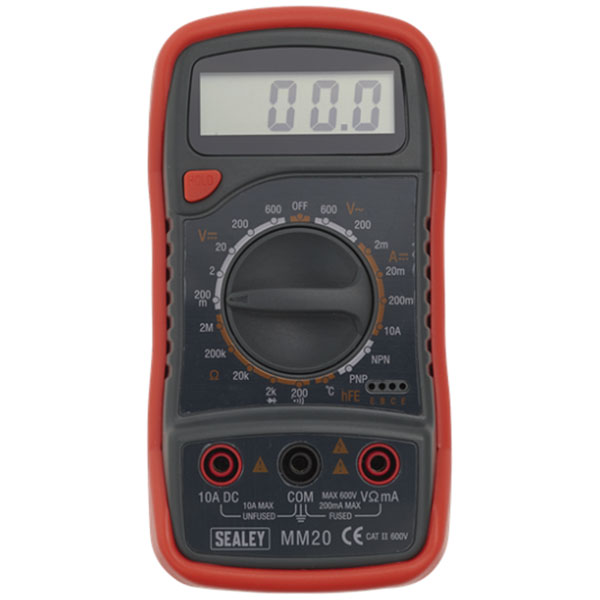

Heavy-duty general purpose multimeter with clear and easy-to-read LCD display. Features data-hold function, temperature probe and diode test facility. Housed in rugged rubber boot with integral stand. Supplied with full set of leads and probes.
Measures:
AC and DC Voltage
DC Current
Resistance
Temperature
Audible Continuity
Diode/Transistor Verification Mode Model No MM20 Nett Weight: 260g AC Voltage (Accuracy): 200V, 600V (±2%) DC Voltage (Accuracy): 200mV (±0.5%), 2V (±0.8%), 20V (±0.8%), 200V (±0.8%), 600V (±0.8%) AC Current (Accuracy): No DC Current (Accuracy): 2mA (±1%), 20mA (±1%), 200mA (±1.2%), 10A (±2%) Resistance (Accuracy): 200Ω, 2kΩ, 20kΩ, 200kΩ (±0.8%), 2MΩ (±1.2%) Capacitance (Accuracy): No Temperature (Accuracy): Range; -40°C-1000°C, (±1% up to 400°C), (±2% over 400°C) Frequency (Accuracy): No Duty Cycle: No Continuity Audible: Yes Diode Test: Yes Transistor Test: Yes High-Impact Rubber Case: Yes Digits x Height: 6 x 12mm Low Battery Indicator: Yes Battery (Supplied): 1 x 9V Information: Integral Stand Size (L x W x D): 140 x 70 x 35mm Weight: 260g Conformity: IEC 1010
Type
Multimeter
AC Voltage Max.
600V
DC Voltage Max.
600V
Display Count
N/A
Frequency Max.
N/A
Lifetime Warranty
No
No. of Digits
N/A
Resistance Max
2000000Ω
