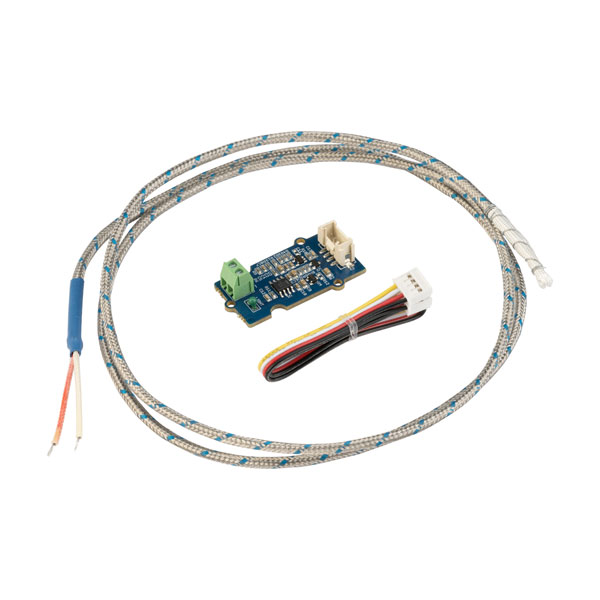

Seeed 111020002 Grove - High Temperature Sensor

Seeed 111020002 Grove - High Temperature Sensor uses a K-type thermocouple temperature detection, with a thermistor to detect the ambient temperature as temperature compensation. The detectable range of this Sensor is -50-600℃, and the accuracy is & amp; plus mn;(2.0% + 2℃) Thermocouples are very sensitive, requiring a good amplifier with a cold compensation reference.

• Voltage: 3.3 ~ 5V
• Max power rating at 25℃：300mW
• Operating temperature range：-40 ~ +125 ℃
• The temperature measurement range is: (-50 ~ +600℃)
• Amplifier output voltage range: (0 ~ 3.3 V) mv
• Cold junction compensation (environment temperature measurement)
• Thermocouple temperature measurement accuracy of + / - 2.0% (+ 2 ℃)
• Dimensions: 110mm x85mm x12.5mm
• Weight: G.W 30g
• Battery: Excluded

Type	Grove - Temperature Sensor
