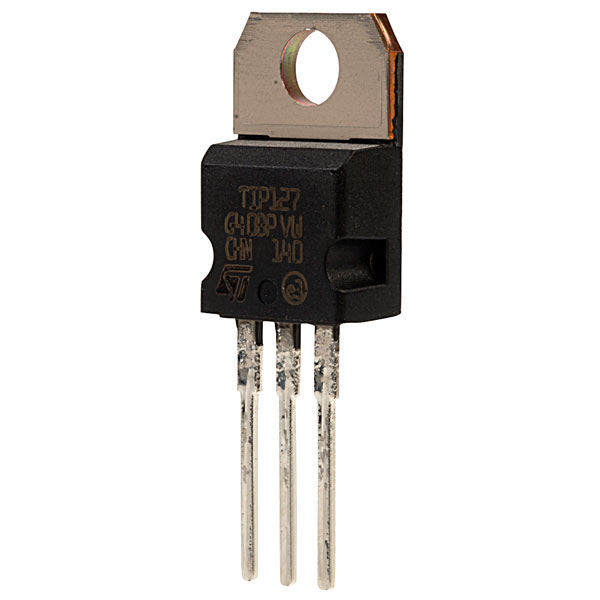

A high power Darlington transistor in a plastic package. Typical applications include high power switching, hammer drive, pulse motor drive and inductive load drive.
PNP Polarity
100V Collector-Emitter voltage
100V Collector-Base voltage
5V Emitter-Base voltage
5A Collector current
65W Power
1000 DC Current gain
0.5mA Collector cut-off current
4V Collector-Emitter saturation voltage
TO-220 Case
Type
PNP
Collector Current (Ic)
5A
Collector-Base Voltage (Vcb)
100V
DC Current Gain (hfe)
1000
Emitter-Base Voltage (Veb)
5V
Package/Case
TO-220
Power Dissipation (Pd)
65W
Order Code: {{product.ProductCode}}
Your Ref: {{product.CustomerCode}}
MPN: {{product.ManuPartNo}}
{{attribute.Name}} : {{decodeHtml(attribute.Value)}}
ROHS : Compliant
ROHS : Exempt
ROHS : Non Compliant
