Tiger Power Supplies TP1182 5V DC 1A 5W UK Plug In Power Supply 2.1mm

Name: Tiger Power Supplies TP1182 5V DC 1A 5W UK Plug In Power Supply 2.1mm
Brand: Tiger Power Supplies
Price: 3.38 GBP
Availability: InStock

Standard range

Order Code:

85-7789

Brand: Tiger Power Supplies MPN: TP1182

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (2)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£3.38
3+	£3.28
5+	£3.06
10+	£2.86

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

140 in stock, despatched same dayAdditional quantity lead time 6 months

Product Details
Data Sheets
Quick Quote

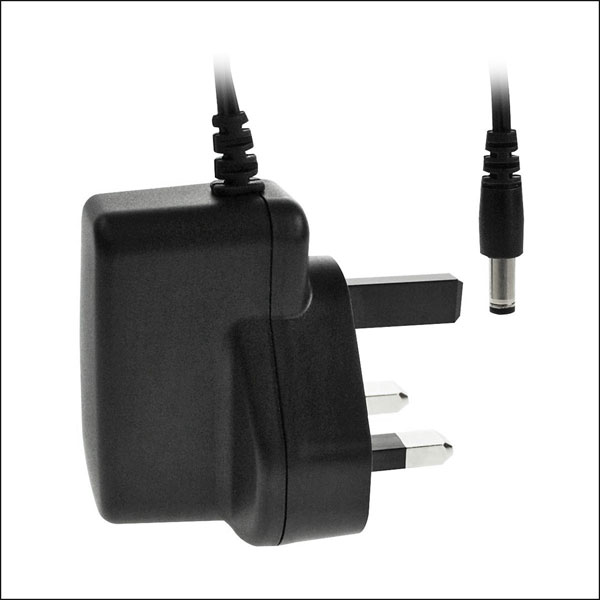

Tiger Power Supplies TP1182, 5VDC, 1A, 5W power supply has a 100-240V AC input. It comes complete with a UK fixed 3-pin AC input plug. The power supply provides a single voltage regulated output and is fitted with a 1.5m captive lead with a 2.1 x 5.5 x 12mm female, centre positive DC connector.

The power supply features full safety approvals to EN62368-1 world safety standards, including CE and UKCA and also meets level VI energy efficiency requirements. Its compact design makes it suitable for a wide range of applications.

Input Voltage: 100VAC to 240VAC (90VAC to 264VAC max.)
Maximum Power: 5W
Output Voltage: 5V DC
Output Current: 1A
UK 3-Pin Plug Connector
Miniature size
Short circuit and over voltage protection
Energy Efficiency Level VI
Safety Specifications: Approved to EN62368-1 Safety Standards

Type	UK Plug Power Adapter
AC Input Plug Nationality	UK
Cord Length	1.5m
Dimensions	43.6 x 40.9 x 22.9mm
Output Connector	2.1 x 5.5 x 12mm female barrel
Output Current	1A
Output Voltage (DC)	5V
Polarity	Centre positive
Power Rating	5W
Supply Voltage Range	100 to 240V AC
