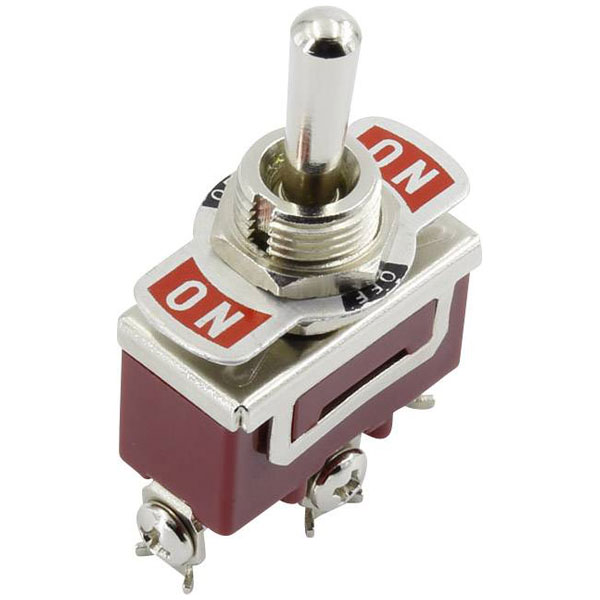

TruComponents 751448 Toggle switch Panel Mount On/Off/On SPDT Screw Terminals

TruComponents
Order Code:

75-1448

Brand: TruComponents MPN: 751448 EAN-13: 2050004883121
Qty Unit Price (Ex VAT)
2+ £3.41
5+ £3.03
10+ £2.78
25+ £2.62
50+ £2.48
100+ £2.39
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
117 available to back orderBack-order availability date - 10/01/2026

The TruComponents 751448 Toggle Switch is a versatile and reliable switch designed for a wide range of applications. With its Single Pole Double Throw (SPDT) configuration, it offers multiple switching options, making it ideal for various projects and devices.
Contact Configuration 1 x On/Off/On
Switch Function latch
Current Rating (Amps) 15A
Termination Style Screws
Dim (L x W) 32.5 mm x 20 mm
Length 32.5mm
Lighting type None
Max. temperature +80°C
Min. temperature -25°C
Misc Attribute XT-13B
Number of Poles 1
Recess depth 29mm
Recess diameter 12mm
Switching Voltage 250V AC
Type Toggle switch
Width 20mm
