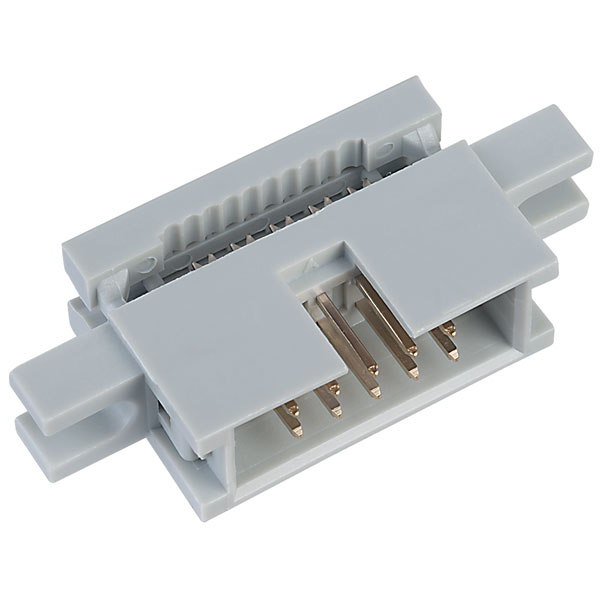

TruConnect 10 Way IDC Chassis Mounting Plug 2.54mm Pitch

Name: TruConnect 10 Way IDC Chassis Mounting Plug 2.54mm Pitch
Brand: TruConnect
Price: 3.95 GBP
Availability: InStock

Order Code:

19-0071

Copy to clipboard

( Write a review )

Brand: TruConnect Copy to clipboard MPN: 19-0071 Copy to clipboard

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (4)

Quickly find another product in this range by Number of Pins:

10 16 26 40

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
5+	£0.790
20+	£0.730
50+	£0.640
100+	£0.570
250+	£0.510
500+	£0.470

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 5

584 in Stock, despatched same dayAdditional quantity lead time 4 months

Product Details
Data Sheets
Quick Quote

A range of cable plugs designed for chassis mounting making them ideal for connecting printer and serial cables. They are widely used in the field of communication equipment and appliances and PC computer boards.

Name: IDC Cable mounting plug
Pitch: 2.54mm
Mates with: 1.27mm flat cable
Material: Insulator: thermoplastic (UL 94V-0)
Contact: Copper alloy
Storage temperature: -20°C to -70°C
Operating temperature: 0°C to -85°C
Contact resistance: 20mΩ max.(initial)
Insulation resistance: 1000MΩ min
Housing colour: Grey
Dielectric withstanding voltage: AC 500V per minute
Available in 10, 16, 20, 26 and 40-way options
UL Approved.

Number of Rows	1
Number of Pins	10
Pitch	2.54mm

Technical Specification

To use this facility please Sign In.

Questions

*Question functionality currently disabled

19 January 2017 Question by: Rapid Customer | Product code: 19-0071

Q. Will the DS1016-10 MASIBB socket match the DS1015-10 MNOA chassis plug ?

A. Hi Ron, thank you for your question. 19-1017 would be the mating part to 19-0071.

25 July 2013 Question by: Rapid Customer | Product code: 19-0071

Q. These look like they are cable mounting. Where are the solder pins? If they are chassis mounting as you say are they horizontally or vertically orientated?

A. Hi Steve. Thank you for your question. This chassis mount IDC connector employs a push git for taking the IDC wire directly - they are not a solder type.
