TruConnect 211864 7.62mm 12 Way 15A 300V Header Straight Top Entry Open

Name: TruConnect 211864 7.62mm 12 Way 15A 300V Header Straight Top Entry Open
Brand: TruConnect
Price: 0.562 GBP
Availability: InStock

Standard range

Order Code:

21-1864

Brand: TruConnect MPN: 211864 EAN-13: 5053556019687

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (8)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.562
10+	£0.434
50+	£0.367
100+	£0.318
250+	£0.281
500+	£0.251

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

500 in stock, despatched same dayAdditional quantity lead time 5 months

Product Details
Data Sheets
Quick Quote

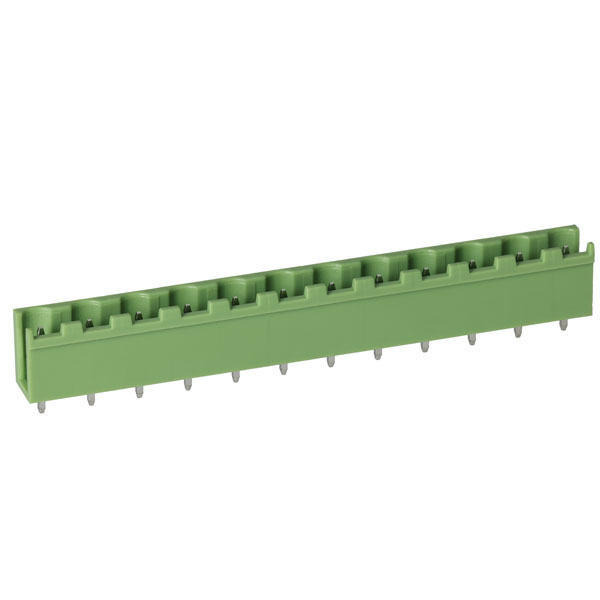

Top entry, open ended, header connector with 12 poles, 7.62mm pitch.

Vertical orientation
Open ended
Rated voltage: 300V
Rated current: 15A
Moulded housing in green flame retardant PA66
PCB mounting, Solder
Pin header: tin plated brass
UL approved

Current Rating	15A
Pitch	7.62mm
Body Style	Open ended header
Flame Retardancy	UL94-V0
Material	PA66
Mounting	Pluggable
Number of Ways	12
Termination	Pluggable
Type	Vertical Top Entry Header
