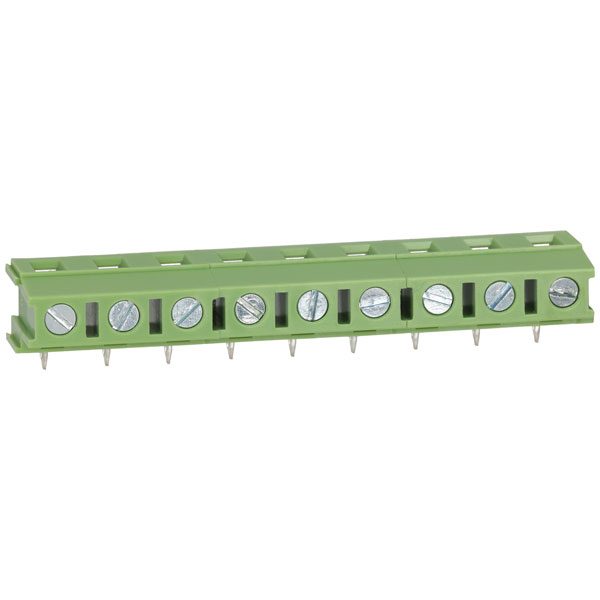

TruConnect 212968 7.5mm Standard Profile 90 Degree 9 Way Terminal Block

TruConnect
Standard range
Order Code:

21-2968

Brand: TruConnect MPN: 212968 EAN-13: 5053556022045

  • Quickly find another product in this range by No. of Ways:

Qty Unit Price (Ex VAT)
1+ £1.65
10+ £1.28
50+ £1.08
100+ £0.934
250+ £0.824
500+ £0.737
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched same dayAdditional quantity lead time 5 months

Horizontal mounting, moulded rising clamp terminal block with 9 poles, 7.5mm pitch.


  • Standard profile design
  • Interlocking (2-way and 3-way)
  • Horizontal orientation
  • Rising clamp
  • Slotted screws
  • 24 to 12AWG (2.5mm²)
  • Rated voltage: 300V
  • Rated current: 15A
  • Moulded housing in green flame retardant PA66
  • Screws: M2.5, zinc plated steel
  • Pin header: tin plated brass
  • UL approved
Colour Green
Current Rating 15A
Mounting Direction Horizontal
Mounting Type Through Hole
No. of Ways 9
Pitch 7.5mm
Voltage Rating 300V
Wire Gauge 2.5mm²
Wire Gauge (AWG) 24 to 12AWG
Wire Termination Rising clamp
