TruConnect 28 Pin 0.6in Wirewrap DIL Socket

Name: TruConnect 28 Pin 0.6in Wirewrap DIL Socket
Brand: TruConnect
Price: 2.25 GBP
Availability: InStock

Order Code:

22-1719

Copy to clipboard

( Write a review )

Brand: TruConnect Copy to clipboard MPN: 22-1719 Copy to clipboard

RoHS Compliant
Country of Origin: Switzerland
Free UK shipping available
View Full Product Range (4)

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£2.25
50+	£2.05

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

48 in Stock, despatched same dayAdditional quantity lead time 9 weeks

Product Details
Data Sheets
Quick Quote

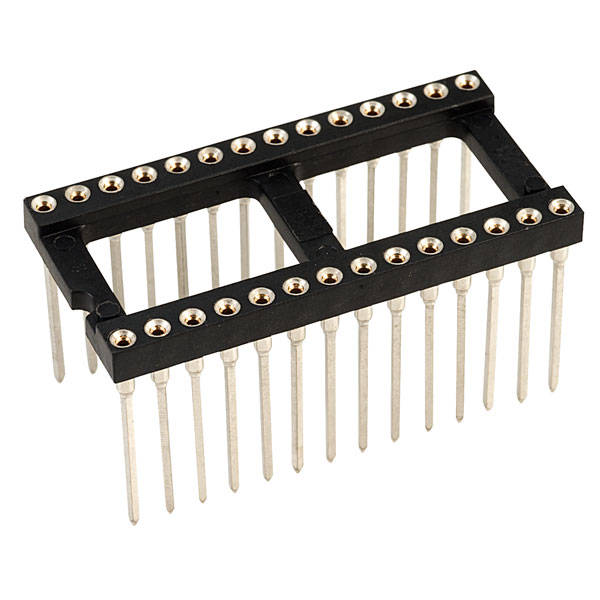

Wire-wrap DIL socket with 28 pins, open frame style.

Beryllium copper contact material
Gold contact plating
2.54mm lead pitch
15.24mm row pitch
Wire-wrap leg style
Turned contact style
1A current rating
-55°C to +125°C temperature range
Black glass filled polyester insulator
100 cycles life
10mR contact resistance
1000Vrms dielectric strength
Low profile
UL 94V-O flammability
Preci-dip 12X Series

Row Pitch	7.62mm
Contact Material	Beryllium Copper
Contact Plating	Gold
Contact Style	Turned Pin
Current Rating	1A
Height	2.8mm
Lead Pitch	2.54mm
Leg Style	Wire-wrap
Length	35.5mm
Number of Pins	28
Temperature Range	-55 to +125°C
Type	Low profile
Width	10.1mm

Technical Specification

To use this facility please Sign In.

Questions

*Question functionality currently disabled

26 July 2018 Question by: Rapid Customer | Product code: 22-1719

Q. Hi, what does the 0.3 & 0.6 refer to on these holders please?, it can't be the pin pitch as the data sheet gives this as 2.54 which I would expect. Thanks. Bob

A. Hi Bob, thank you for your question. It's the imperial measurement that has been carried over for the row pitch (width) where 0.6" = 15.24mm and 0.3" = 7.62mm to accommodate the two different widths of common through hole I.Cs.
