TruConnect 3.5mm Low Profile 90 Degree 3 Way Terminal Block

TruConnect
Standard range
Order Code:

21-3911

Brand: TruConnect MPN: 21-3911

  • Quickly find another product in this range by No. of Ways:

Qty Unit Price (Ex VAT)
5+ £0.459
10+ £0.355
50+ £0.300
100+ £0.260
250+ £0.230
500+ £0.206
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
907 in stock, despatched same dayAdditional quantity lead time 5 months

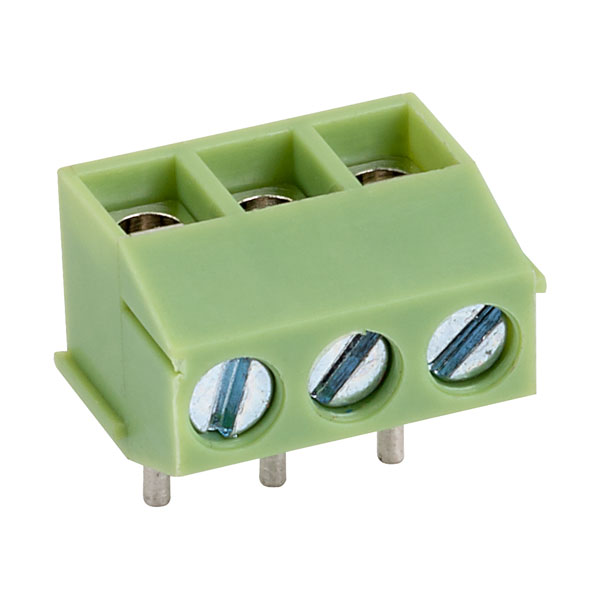

A horizontal mounting, moulded wire protector terminal block with 3 poles, 3.5mm pitch.


  • Low profile design
  • Horizontal orientation
  • Wire protector clamp style
  • Slotted screws
  • 24 to 18AWG
  • Rated voltage: 300V
  • Rated current: 7A
  • Moulded housing in green flame retardant PA66
  • Screws: zinc plated steel
  • Pin header: tin plated brass
  • Stainless steel wire guard
  • UL approved
Colour Green
Current Rating 7A
Mounting Direction Horizontal
Mounting Type Through Hole
No. of Ways 3
Pitch 3.5mm
Voltage Rating 300V
Wire Gauge 1mm²
Wire Gauge (AWG) 24 to 18AWG
Wire Termination Screw, Wire Protector
