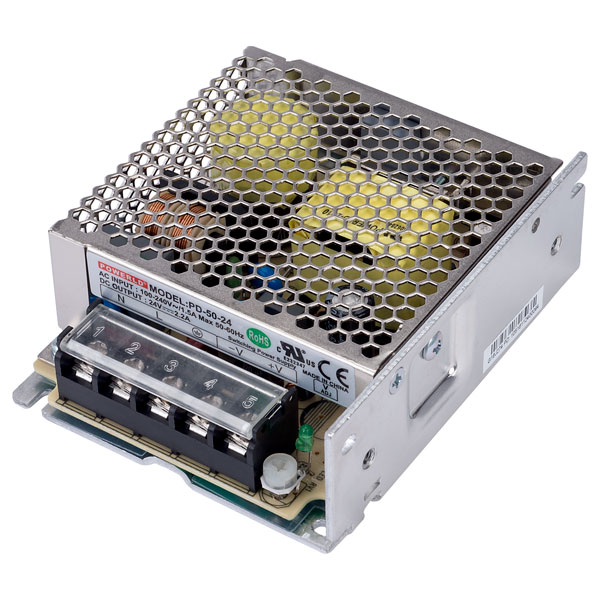

The TT Electronics PowerLD 24V DC 50W Enclosed Power Supply Unit PD-50-24 is an enclosed chassis type switch mode power supply equipped with a compact metal case and screw terminal block.
105C long life electrolytic capacitors 100% full load born-in test Protections: Short circuit/OLP/OVP Compliance to EN 61000-3-2 (PFC) Applications: industrial, automation and test
Dimensions
(L x W x H) 99 x 82 x 35mm
Input Connection
Screw terminals
Number of Outputs
1
Output Connectors
Screw terminals
Output Current Max.
2.2A
Output Current Min.
0A
Output Voltage Max.
24V
Output Voltage Min.
N/A
Power Rating
50W
Supply Voltage Range
85 to 264V
Temperature Range
-20 to +70°C
Order Code: {{product.ProductCode}}
Your Ref: {{product.CustomerCode}}
MPN: {{product.ManuPartNo}}
{{attribute.Name}} : {{decodeHtml(attribute.Value)}}
ROHS : Compliant
