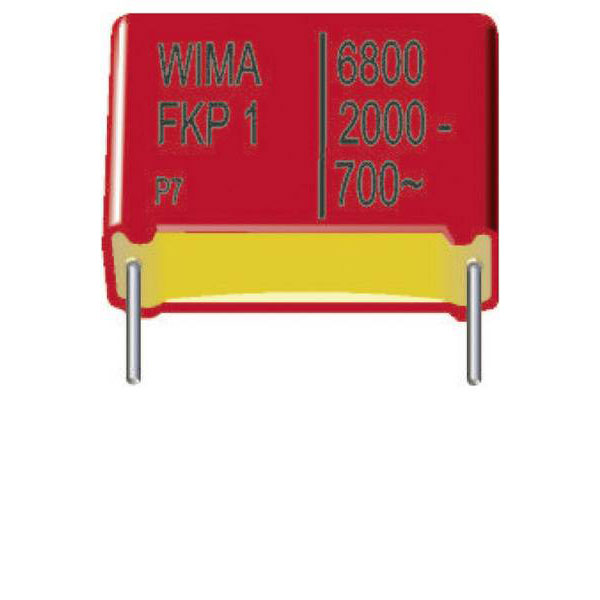

Wima FKP1U006804C00KS FKP1 680pF ±10% 2000V Radial Polypropylene Capacitor
Image Representative of Range

Wima FKP1U006804C00KS FKP1 680pF ±10% 2000V Radial Polypropylene Capacitor

Wima
Standard range
Order Code:

64-2506

Brand: Wima MPN: FKP1U006804C00KS
Qty Unit Price (Ex VAT)
1+ £0.651
50+ £0.431
100+ £0.373
500+ £0.338
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
127 available to back orderBack-order availability date - 22/01/2025

A 2000V 0.68nF capacitor from the Wima FKP1 series of radial polypropylene capacitors. Designed for pulse applications, the capacitor has metal foil electrodes and schoopage contacts as well as internal series connection for a high current carrying capability. Suitable for high pulse and high frequency applications e.g. switch mode power supplies, converter in drives and power electronics, deflection systems in monitors, and televisions, electronic ballasts, etc.


  • Tolerance 10%
  • Dimensions 6 x 12.5 x 18mm
  • PCM 15mm
  • Double-sided metallisation
  • Extremely high pulse duty
  • Self-healing
  • Very low dissipation factor
  • Negative capacitance change versus temperature
Type Radial leaded
Capacitance 680pF
Dimensions 6 x 12.5 x 18mm
Material Polyester
Operating Temperature -55 to +100°C
Pitch 15mm
Tolerance 10%
Voltage 2000V
