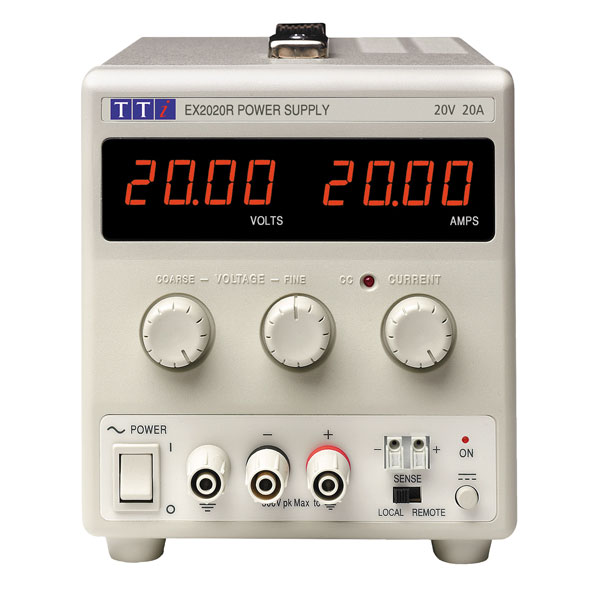

This high power compact single output switch mode PSU from the Aim-TTi EX series provides a high level of power at a very affordable price. By combining switch-mode pre-regulation with linear post-regulation, performance levels comparable to an all linear design have been achieved.
- Power 400W
- Output current 20A
- Output voltage 20V
- Compact design takes up minimal bench space
- Quiet operation
- Mixed-mode regulation
- Excellent line and load regulation
- Low noise
- Good transient response
- High power efficiency
- Constant voltage and constant current modes with automatic crossover
- Coarse and fine voltage control
- Logarithmic current control enabling low currents to be accurately set
- Separate digital voltmeter and ammeter for each main output
- Current limit settings are displayed when output switch is off, enabling verification of settings
- Bright LED display with 14mm high characters and an update rate of four per second
- All outputs short circuit proof and fully protected against external voltages and reverse currents
- Remote sensing
- Complies with EN61010-1 and EN61326
Not recommended for use as a battery charger.
| Number of Outputs |
1 |
| Output Current Max. |
20A |
| Output Current Min. |
0A |
| Output Voltage Max. |
20V |
| Output Voltage Min. |
0V |
| Power Rating |
400W |
| Supply Voltage Range |
220 to 240V |
| Temperature Range |
+5 to +40°C |
