Binder 09-9748-70-03 Female 4mm 3 Pin Cable Mnt Str Relief with Solder Terminal

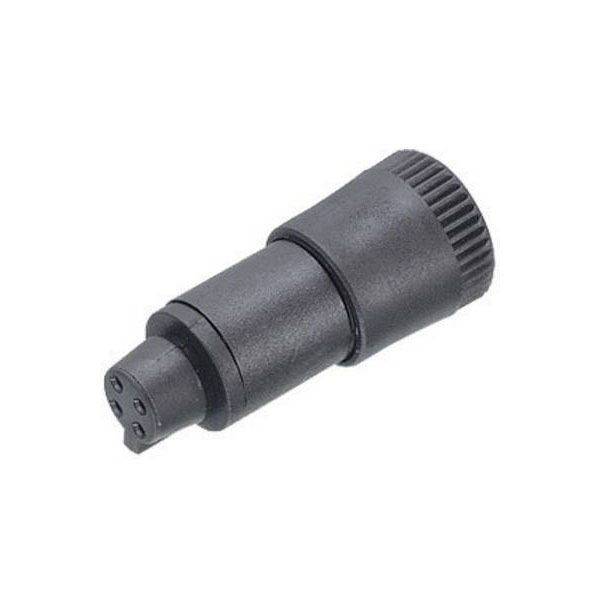

Image Representative of Range

Binder 09-9748-70-03 Female 4mm 3 Pin Cable Mnt Str Relief with Solder Terminal

Binder
Standard range
Order Code:

55-1113

Brand: Binder MPN: 09-9748-70-03
Qty Unit Price (Ex VAT)
1+ £4.98
10+ £4.67
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
131 available to back orderBack-order availability date - 28/12/2024

A female 4mm 3-pin black subminiature panel mount snap-in connector with strain relief and solder termination.
  • Number of poles: 3
  • Connector locking system: Snap-in locking
  • Termination: solder
  • Wire gauge (mm): 0,25 mm²
  • Wire gauge (AWG): 24
  • Cable outlet: max. 4 mm
  • Degree of protection: IP 40
  • Mechanical operation: >100 mating cycles
  • Upper temperature: +70 °C
  • Lower temperature: -25 °C
  • Rated voltage: 60 V
  • Rated impulse voltage: 800 V
  • Pollution degree: 1
  • Overvoltage category: II
  • Material group: III
  • Rated current (40°C): 3 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Au (gold)
  • Material of contact body: PA
  • Material of housing: PA
Colour Black
Contact Finish Gold plated
Contact Termination Solder
Pin/Socket Socket
Type Snap-in, Subminiature, Cable Mount
