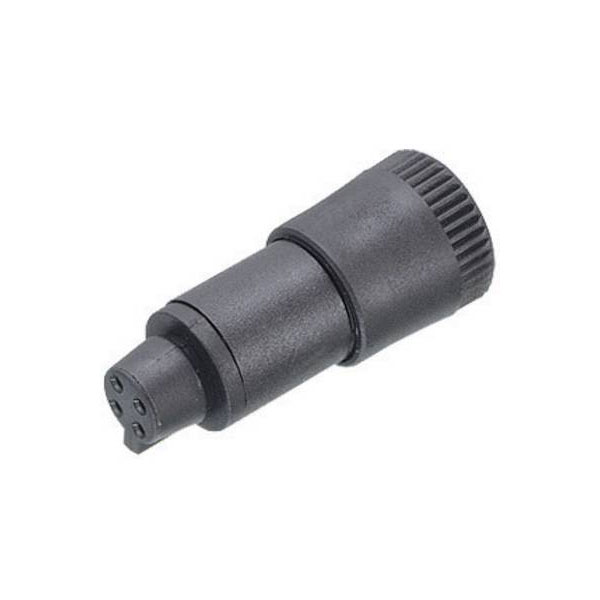

Image Representative of Range

Binder 09-9790-71-05 Female 5mm 5 Pin Cable Mnt Str Relief with Solder Terminal

Name: Binder 09-9790-71-05 Female 5mm 5 Pin Cable Mnt Str Relief with Solder Terminal
Brand: Binder
Price: 7.75 GBP
Availability: BackOrder

Order Code:

55-1115

Copy to clipboard

( Write a review )

Brand: Binder Copy to clipboard MPN: 09-9790-71-05 Copy to clipboard

RoHS Compliant
Country of Origin: Germany
Free UK shipping available
View Full Product Range (5)

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£7.75
10+	£7.46
50+	£7.20

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Standard factory lead time 7 days

33 available to back OrderBack-order availability date - 03/08/2024

Product Details
Data Sheets
Quick Quote

A female 5mm 5-pin black subminiature panel mount snap-in connector with strain relief and solder termination.

Number of poles: 5
Connector locking system: Snap-in locking
Termination: solder
Wire gauge (mm): 0,25 mm²
Wire gauge (AWG): 24
Cable outlet: max. 5 mm
Degree of protection: IP 40
Mechanical operation: >100 mating cycles
Upper temperature: +70 °C
Lower temperature: -25 °C
Rated voltage: 60 V
Rated impulse voltage: 800 V
Pollution degree: 1
Overvoltage category: II
Material group: III
Rated current (40°C): 3 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA
Material of housing: PA

Contact Material	CuSn
Contact Plating	Gold
Current Rating	3A
Gender	Female
IP Rating	IP40
Mounting Type	Cable
Number of Ways	5
Termination Method	Solder
Voltage Rating (AC)	60V
