Binder 99-0437-19-05 Male 8-10mm 5 Pin Cable Mount with Screw Terminal
Image Representative of Range

Binder 99-0437-19-05 Male 8-10mm 5 Pin Cable Mount with Screw Terminal

Binder
Standard range
Order Code:

55-0744

Brand: Binder MPN: 99-0437-19-05 EAN-13: 2050001613950
Qty Unit Price (Ex VAT)
1+ £16.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
31 available to back orderBack-order availability date - 12/02/2025

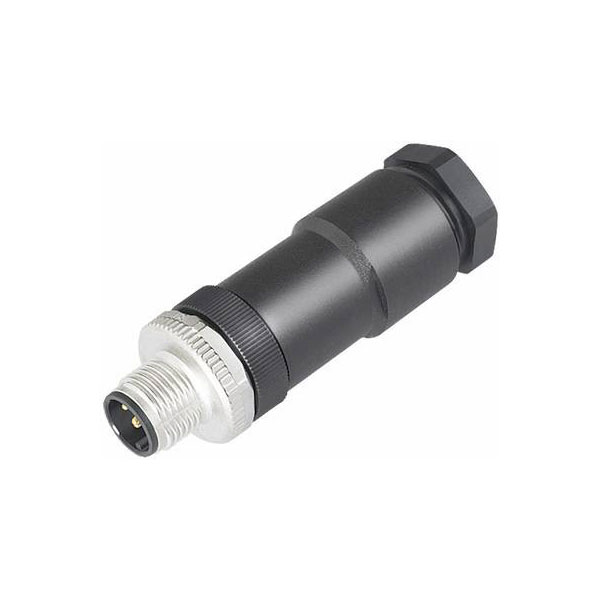

A male 5-pin IP67 black and silver power cable mount M12 screw connector with an 8 to 10mm outlet and screw clamp termination.
  • Number of poles: 5
  • Connector locking system: Screw
  • Termination: screw clamp
  • Wire gauge (mm): max. 1,5 mm²
  • Wire gauge (AWG): max. 16
  • Cable outlet: 8 - 10 mm
  • Degree of protection: IP 67
  • Mechanical operation: >100 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 3
  • Overvoltage category: II
  • Material group: II
  • Rated current (40°C): contact 1-4 8A, contact 5 2A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: CuSnZn (Optalloy)
  • Material of contact body: PA
  • Material of housing: PA
Cable Diameter 8 to 10mm
Contact Material Brass
Contact Plating CuSnZn
Gender Male
IP Rating IP67
Mounting Type Cable
Number of Ways 5
Termination Method Screw
Voltage Rating (AC) 125V
