Binder 99-0612-00-04 Female Panel Mnt 4 Pin with Solder Termination

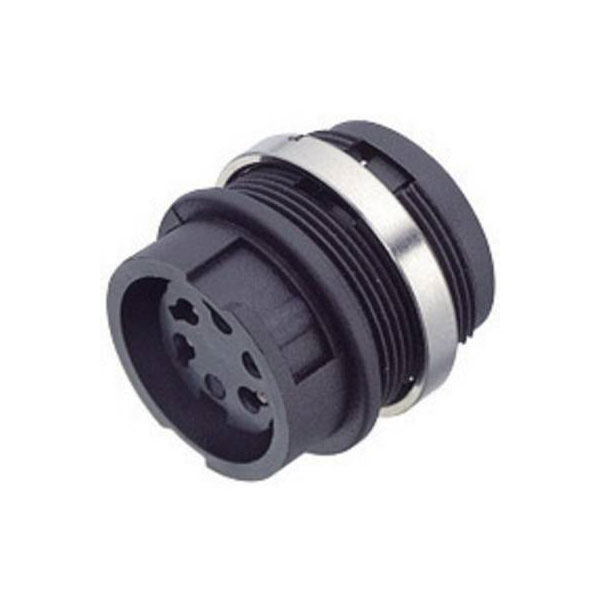

Image Representative of Range

Binder 99-0612-00-04 Female Panel Mnt 4 Pin with Solder Termination

Standard range
Order Code:

55-1091

  Copy to clipboard
( Write a review )
Brand: Binder  Copy to clipboard MPN: 99-0612-00-04 Copy to clipboard
PCB Symbol, Footprint or 3D Model
 Report an error
Qty Unit Price (Ex VAT)
1+ £3.20
10+ £3.08

Add to Quote
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Standard factory lead time 7 days
21 available to back orderBack-order availability date - 06/11/2024
A 4-pin miniature panel mount female bayonet connector with solder termination.
  • Number of poles: 4
  • Connector locking system: Bayonet-locking
  • Termination: solder
  • Wire gauge (mm): 0,75 mm²
  • Wire gauge (AWG): 20
  • Degree of protection: IP 40
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 250 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 1
  • Overvoltage category: I
  • Material group: III
  • Rated current (40°C): 6 A
  • Volume resistivity: ≤ 5 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Ag (silver)
  • Material of contact body: PBT (UL 94 V-0)
  • Material of housing: PA (UL 94 V-0)
Colour Black
Contact Finish Silver plated
Contact Termination Solder
Pin/Socket Socket
Type Bayonet Miniature, Panel Mount
