Binder 99-0620-00-06 Female Panel Mnt 6 Pin with Solder Termination

Binder 99-0620-00-06 Female Panel Mnt 6 Pin with Solder Termination

Order Code:

55-1095

  Copy to clipboard
( Write a review )
Brand: Binder  Copy to clipboard MPN: 99-000-06 Copy to clipboard
 Report an error

Discontinued

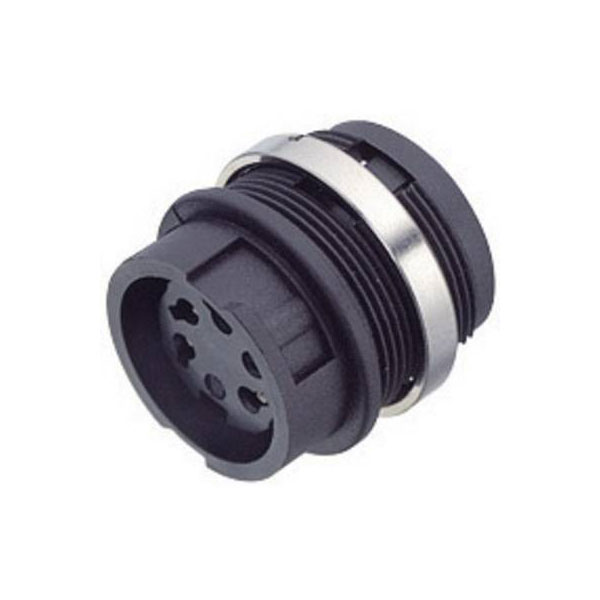

A 6-pin miniature panel mount female bayonet connector with solder termination.
  • IP40
  • AWG size: 20
  • Connection: Soldering
  • Contact material: Ag (Silver)
  • Contamination level: 1
  • Cross section: 0.75mm²
  • Manufacturer part No.: 99-000-06
  • Mounting hole diameter: M18 x 0.75
  • Nominal current: 6 A
  • Nominal voltage: 250 V
  • Number of pins: 6
  • Protection type: IP40
  • Seal type: bayonet
  • Specification: Flange socket
  • Temperature range: -40 - +85°C
  • Type (manufacturer type): 678
Contact Plating Silver
Current Rating 6A
Gender Female
IP Rating IP40
Mounting Type Panel
Number of Ways 6
Termination Method Solder
Voltage Rating (AC) 250V
