Binder 99-4217-00-07 M 6-8mm Cable Mnt 6+PE Pin with Screw Termination

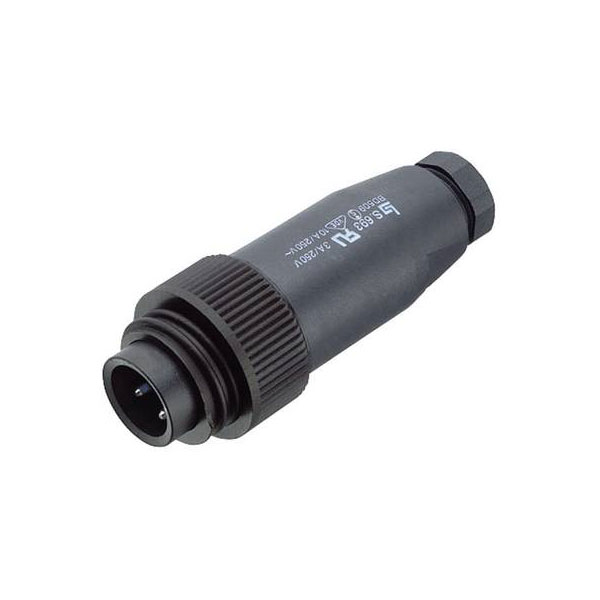

Image Representative of Range

Binder 99-4217-00-07 M 6-8mm Cable Mnt 6+PE Pin with Screw Termination

Standard range
Order Code:

55-1380

  Copy to clipboard
( Write a review )
Brand: Binder  Copy to clipboard MPN: 99-4217-00-07 Copy to clipboard PCB Symbol, Footprint or 3D Model
 Report an error
Qty Unit Price (Ex VAT)
1+ £12.66
10+ £12.35
50+ £12.03

Add to Quote
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Standard factory lead time 7 days
317 available to back orderBack-order availability date - 06/11/2024
A 6+PE pin IP67 panel mount VDE power connector with a 6 to 8mm outlet and screw clamp termination.
  • Number of poles: 7
  • Connector locking system: Screw
  • Termination: screw
  • Wire gauge (mm): 0,34-1,5 mm²
  • Cable outlet: 6 - 8 mm
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +100 °C
  • Lower temperature: -40 °C
  • Rated voltage: 250 V
  • Rated impulse voltage: 4000 V
  • Pollution degree: 3
  • Overvoltage category: III
  • Material group: III
  • Volume resistivity: ≤ 5 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Ag (silver)
  • Material of contact body: PBT (UL 94 V-0)
  • Material of housing: PBT (UL 94 V 0)
Contact Finish Silver plated
Contact Termination Screw
Pin/Socket Pin
Type Cable Mount
