Bulgin BZH01/Z0000/02 Horizontal Neon Sp Fused Inlet

Name: Bulgin BZH01/Z0000/02 Horizontal Neon Sp Fused Inlet
Brand: Bulgin
Price: 8.28 GBP
Availability: InStock

Standard range

Order Code:

23-3226

Copy to clipboard

( Write a review )

Brand: Bulgin Copy to clipboard MPN: BZH01/Z0000/02 Copy to clipboard

RoHS Compliant
Country of Origin: United Kingdom
Free UK shipping available
View Full Product Range (2)

Quickly find another product in this range by Type:

C14 fused & switched IEC Inlet Fused and switched plug

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£8.28

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

16 in stock, despatched same dayAdditional quantity lead time 14 days

Product Details
Quick Quote

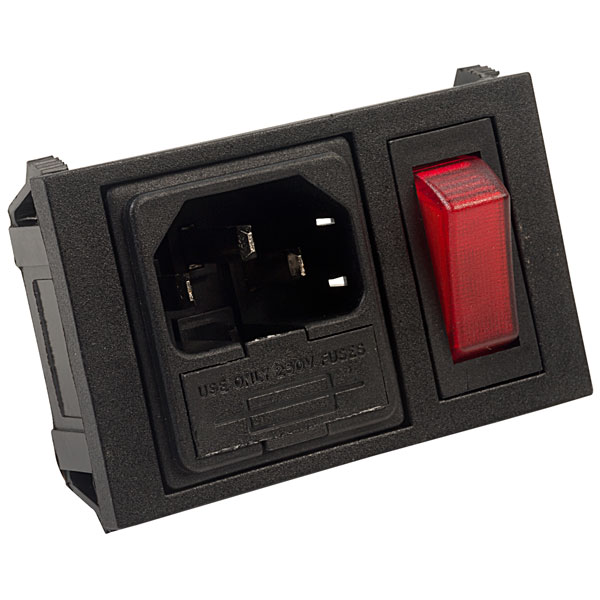

Switched and fused horizontal IEC inlet from Bulgin, which snaps into position allowing fast assembly.

10A rating
Illuminated single pole switch
6.3mm faston tabs
1 - 3mm panel thickness
Fuse drawer holds 20mm fuse, plus a spare
UL, CSA and VDE approved
Bulgin BZH01 series

Contacts per Unit	3
Current Rating	10A
Fuse Holder	Yes 20mm
IEC Standard	C14
Mounting Method	Snap-in
Mounting Type	Chassis
Switch	Yes
Termination	6.3mm Faston
Type	C14 fused & switched
Voltage Rating	250V

To use this facility please Sign In.

Questions

*Question functionality currently disabled

25 July 2013 Question by: Rapid Customer | Product code: 23-3226

Q. They are three lugs on the SPST switch of this IEC inlet. Two make up the SPST but were does the thrid connect to. I'm guessing its for the led in the switch. Does this connect to Mains ground?

A. Hi David. Thank you for your question. The switch incorporates a mains powered neon indicator and the switch is configured as follows: pins 1 ans 2 (closest together) are y our live SPST switch connections and pin 3 (furthest apart) is for the neutral connection so when the switch is made the neon will illuminate. Pin numbers are on the body of the switch that will require removing from the housing to view.
