CamBlock Plus CTBP55VK/5 7.5mm Low Profile Terminal Block 5 Pole

Name: CamBlock Plus CTBP55VK/5 7.5mm Low Profile Terminal Block 5 Pole
Brand: CamdenBoss
Price: 141.75 GBP
Availability: BackOrder

Extended range

Order Code:

21-3201

Copy to clipboard

( Write a review )

Brand: CamdenBoss Copy to clipboard MPN: CTBP55VK/5 Copy to clipboard

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (5)

Quickly find another product in this range by No. of Ways:

2 3 4 5 6

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
250+	£0.567
500+	£0.474
1000+	£0.402

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 250

Standard factory lead time 6 monthsContact us for lead times

Available to back orderPlease contact us for lead time

Product Details
Data Sheets
Quick Quote

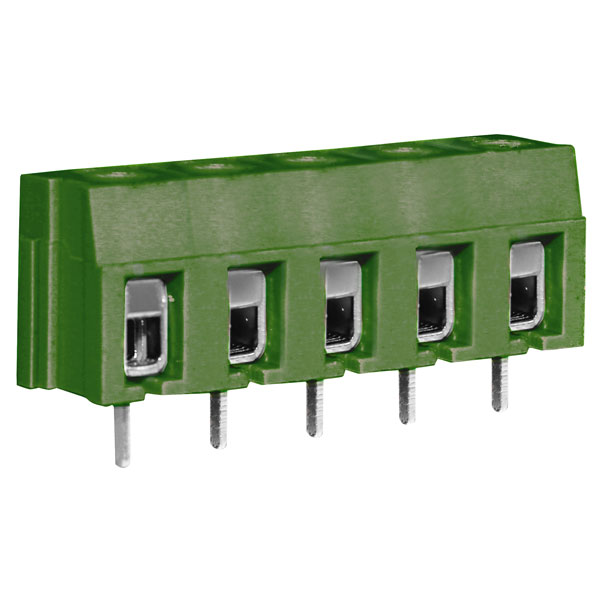

Commercial low profile 5-pole screw terminal block from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

Moulded in UL94-V0 flame-retardant PA66
Wire protector terminals
Anti-solder wicking terminals
Guided pin alignment
Wire capacity 2.5mm² (22 to 14AWG)
Pitch 7.5mm
Current rating 16A UL, 24A VDE
Length 37.5mm
Width 9.1mm
Height 12.5mm
Manufacturer's part CTBP55VK/5

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Colour	Green
Current Rating	16A
Mounting Direction	Vertical
Mounting Type	Through hole
No. of Ways	5
Pitch	7.5mm
Wire Gauge	2.5mm²
Wire Gauge (AWG)	22 to 14AWG
Wire Termination	Screw, Wire Protector
