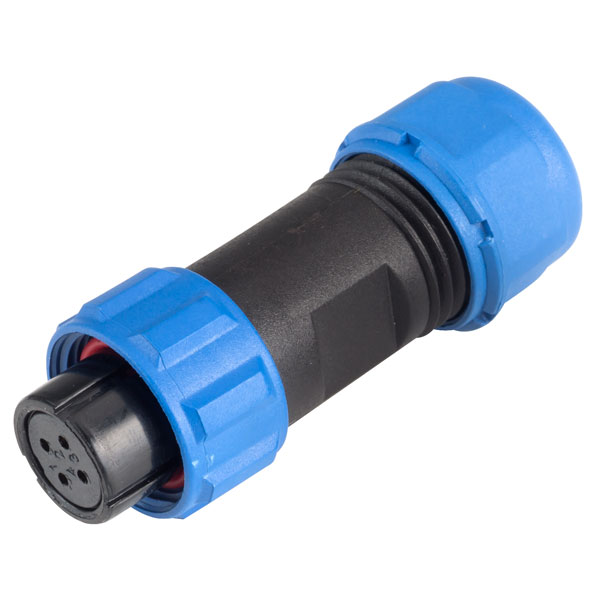

CliffCON® 68 FM686814 IP68 Female Cable Plug 4 Pin

This 4-way female plug is part of the Cliffcon 68 range of IP68 rated multipin threaded connectors for waterproof and rugged applications. It will accept cable diameters between 5 and 8mm (4 to 1 AWG).

• Threaded Coupling
• IP68 protection
• Outer nylon66 plastic shell is fire resistant to UL94 V0
• Inner PPS insert's maximum temperature is 260 °C and is fire resistant to UL94 V0
• Contact material is gold plating over brass
• Solder termination
• 5 to 8mm cable outer diameter
• Rated for more than 500 mating cycles
• 5A rated current
• 250V AC rated voltage
• -25 to +85 °C operating temperature range
• 2000 MΩ insulation resistance
