Finder 22.64.0.230.4310 Relay IP20
Image Representative of Range

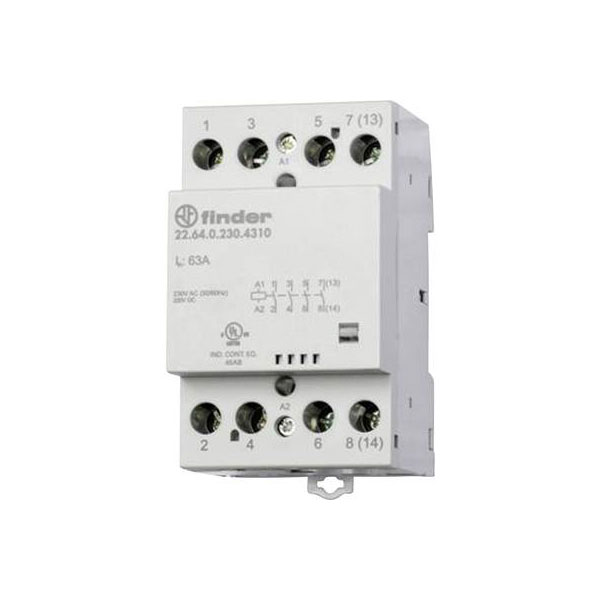

Finder 22.64.0.230.4310 Relay IP20

Finder
Standard range
Order Code:

49-4384

Brand: Finder MPN: 22.64.0.230.4310 EAN-13: 8012823376066
Qty Unit Price (Ex VAT)
1+ £60.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
183 available to back orderBack-order availability date - 22/01/2025

This Finder 63A Modular Contactor Relay is from the 22 Series. The relay is supplied with the 223V coil voltage and all NO contact configurations. The relay has a protective separation (reinforced insulation) between coil and contacts and is 35mm DIN rail mountable. The relay is ideal for high inrush current loads up to 240A.


  • Voltage: 230V
  • Nominal current: 63A
  • Switching voltage: 1000mW
  • Protection type: IP20
  • Ambient temperature: -5°C to +55°C
  • Dielectric strength: 2000V AC
  • Contact type: All NO
  • Switch-on current: (10 ms) 300A
  • Dimensions: 63.1(W) x 95.8(H) x mm
  • Manufacturer's part: Finder 22.64.0.230.4310
Type Relay
Contact Configuration 4NO
Dimensions 95.8 x 53.5 x 63.1mm
Operating Voltage (AC) 240 to 440V
Operating Voltage (DC) 230V
Output Current 63A
Temperature Range -5 to +55°C
