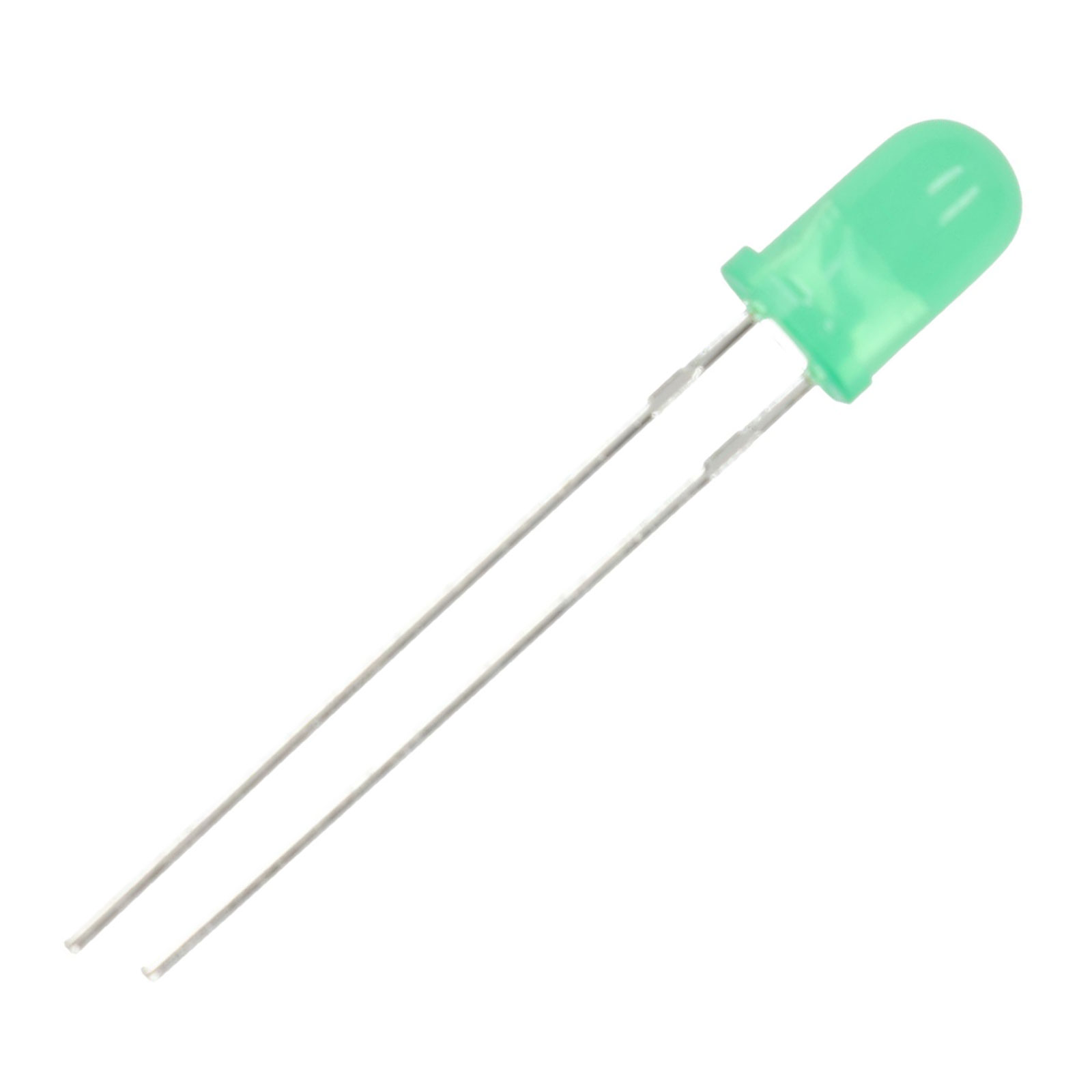

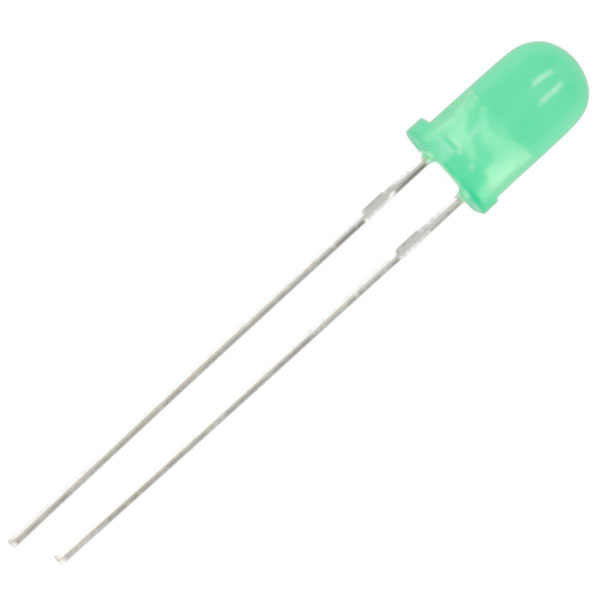

A 5mm 2.25V pure green LED with diffused lens from Kingbright , suitable for PCB and panel mounting applications.
Intensity and colour matched Made with gallium arsenide phosphideLow power consumption Cathode identified by flat on body General purpose leads Reliable and rugged Long life - solid state reliability Rapid Electronics are Kingbright''s leading UK distributor of LEDs. To find out more about the full range of Kingbright products please visit Rapid''s Kingbright page .
LED Colour
Green
Dominant Wavelength
555nm
Forward Current
25mA
Lens Type
Green diffused
Luminous Intensity
5mcd
Reverse Voltage
5V
Viewing Angle
30°
Forward Voltage Typical
2.25V
Max Operating Temp
+85°C
Minimum Operating Temp
-40°C
Size
5mm
