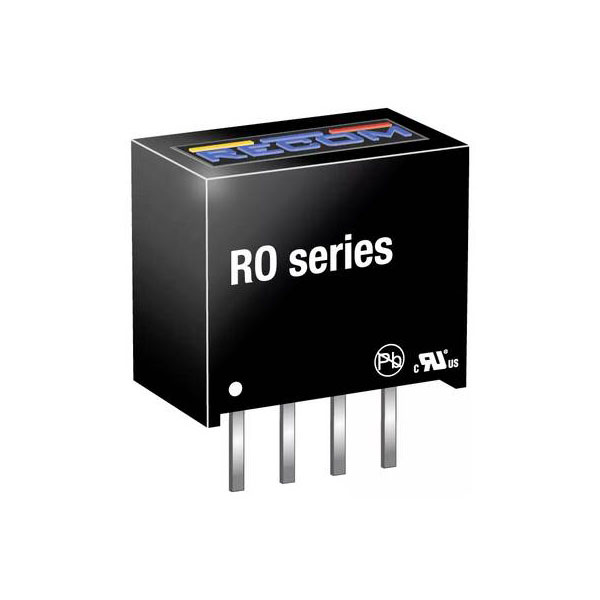

Recom 10000600 RO-1209S 1W DC/DC Converter 12V In 9V Out

Image Representative of Range

Recom 10000600 RO-1209S 1W DC/DC Converter 12V In 9V Out

Recom
Standard range
Order Code:

49-7122

Brand: Recom MPN: RO-1209S
Qty Unit Price (Ex VAT)
1+ £4.85
5+ £4.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
27 in Stock, despatched in 4 days

A Recom unregulated DC/DC converter from the RO series. This single output converter is supplied in the standard SIP4 package style. The converter has been designed to offer exceptionally high efficiency at low loads, an extended operating temperature range and low deviation (10% to 100% load). It is ideal for use in applications with a restricted energy budget, and industrial applications where a high efficiency level is required.


  • Accuracy: 1%
  • Grid pitch: 2.54mm
  • Insulation voltage: 1000V DC
  • Product Specifications: Ripple: (20MHz bandwidth) 100mVpp
  • Output current: 111mA
  • Input voltage: 12V
  • Output voltage: 9V
  • Specification: SIP4
  • Efficiency: 80%
  • Operating Temperature from -40°C to +85°C
  • Dimensions: 11.5(L) x 6.0(W)mm
  • Type: DC to DC Converter RO Series
  • Manufacturer's part: RO-1209S
Mounting Style SIP-4
Number of Outputs 1
Output Current Max 111mA
Output Current Min N/A
Output Voltage Max 9V
Output Voltage Min N/A
Power Rating 1W
Supply Voltage Range 12V
Temperature Range -40 to +85°C
