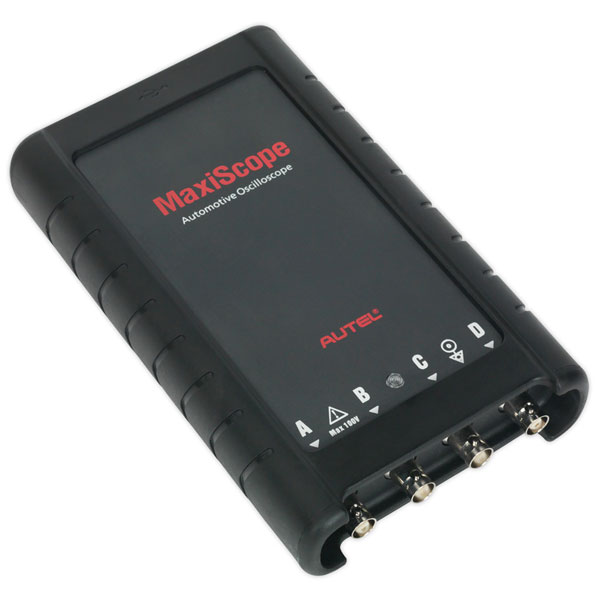

Four-channel automotive oscilloscope suitable for professional applications. Works in conjunction with MaxiSys® Tablets*, Model No's MS905 and MS908, to provide a powerful diagnostic tool. Powered directly from a USB port, with no need for batteries or power leads, making it versatile and portable. The four-channel function allows multiple components to be compared simultaneously. The scope is supplied with a wide selection of automotive type test leads, connectors and probes.
*Not suitable for Model No MS906.
| Model No | MP408 |
| Nett Weight: | 1.45Kg |
| Accessories (supplied): | 1.5m USB Cable, 3m Screened Test Lead (x4), Secondary Ignition Pickup, 2-Pin Breakout Lead, Attenuators 20:1 (x2), Large Crocodile Clip Set (Pair), Small Crocodile Clip Set (Pair), Acupuncture Probe Set, Multimeter Probes (Pair) |
| Input: | |
| Maximum Sample Rate: | 80MS/s (Single Channel), 20MS/s (Multiple Channels) |
| Bandwidth: | 20MHz |
| Input Range: | 50mV - 100V (11 ranges) |
| Coupling: | AC/DC |
| Impedance: | 1MΩ |
| DC Accuracy: | 1% |
| Input Protection: | 200V |
| Timebase Range: | 100ns/div - 1000s/div |
| Buffer Size: | 32M shared on active channels |
| Sensitivity: | 10mV/div - 20V/div |
| Trigger Type: | Rising Edge, Falling Edge |
| Trigger Mode: | Auto, Repeat, Single, None |
| Advanced Features: | Math Channels, Measurements |
| Interface: | USB 2.0 |
| Operating System: | Windows XP (SP3), Windows Vista, 7, 8 (32-bit or 64-bit) |
| Size: | 190 x 115 x 38mm |
