Vishay 14910FOGJSX10101KA 100R 12.7mm White Square Cermet Pot

Vishay
Standard range
Order Code:

68-2000

Brand: Vishay MPN: 14910FOGJSX10101KA

  • Quickly find another product in this range by Resistance:

    100Ω 5kΩ 10kΩ 100kΩ
Qty Unit Price (Ex VAT)
1+ £5.77
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched same dayAdditional quantity lead time 5 months

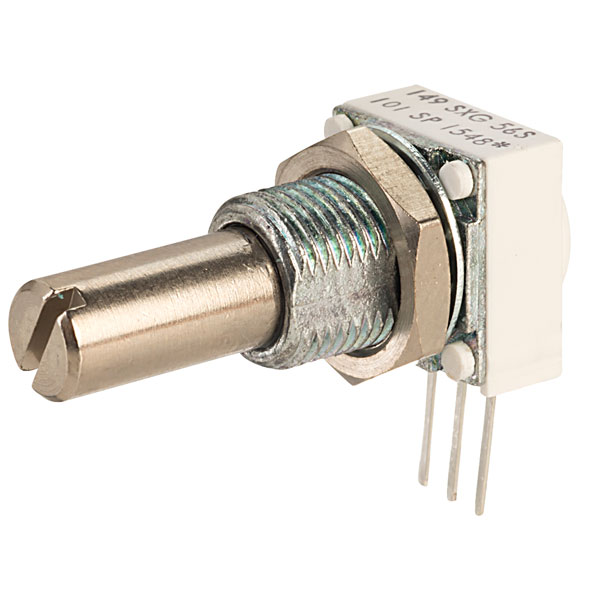

Vishay Spectrol 100R 12.7mm 10% 1W white square cermet potentiometer suitable for PCB or panel mounting.


  • Metal bush with slotted metal shaft (supplied with metal lock washer and nut)
  • Shaft diameter 6.35mm (0.25in)
  • Linear law
  • Low temperature coefficient
  • Robust construction
  • Smooth fed adjustment over full 300° ± 5° mechanical rotation cycle

To find out more about our range of Vishay resistors, diodes, capacitors and switches, please visit our Vishay brand page.


Number of Turns N/A
Power Rating 1W
Resistance 100Ω
Shaft Diameter 3.17mm
Shaft Length 12.7mm
Taper Linear
Tolerance 10%

To use this facility please Sign In.

Sign In

Questions


*Question functionality currently disabled


Friday, February 24, 2017 Question by: Rapid Customer | Product code: 68-2000
Q. The image at the top of this page says the shaft diameter is 6.35 mm, but the technical specification says it is 3.15 mm. Which is correct please? we need a 100 Ohm control potentiometer with a 1/4 inch shaft.
A. Hi Ron, thank you for your question. The shaft is 6.35mm as per the right hand diagram in the data sheet.
