Binder 09-9765-30-04 Male 4 Pin Panel Mnt with Solder Terminal

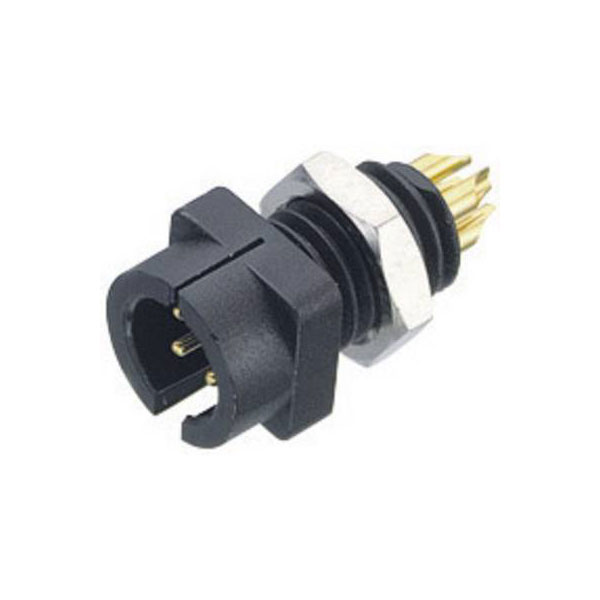

Image Representative of Range

Binder 09-9765-30-04 Male 4 Pin Panel Mnt with Solder Terminal

Standard range
Order Code:

55-1111

  Copy to clipboard
( Write a review )
Brand: Binder  Copy to clipboard MPN: 09-9765-30-04 Copy to clipboard PCB Symbol, Footprint or 3D Model
 Report an error
Qty Unit Price (Ex VAT)
1+ £4.26
10+ £3.87
50+ £3.62

Add to Quote
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Standard factory lead time 7 days
27 available to back orderBack-order availability date - 06/11/2024
A male 4-pin black subminiature panel mount snap-in connector with solder termination.
  • Number of poles: 4
  • Connector locking system: Snap-in locking
  • Termination: solder
  • Wire gauge (mm): 0,25 mm²
  • Wire gauge (AWG): 24
  • Degree of protection: IP 40
  • Mechanical operation: >100 mating cycles
  • Upper temperature: +70 °C
  • Lower temperature: -25 °C
  • Rated voltage: 60 V
  • Rated impulse voltage: 800 V
  • Pollution degree: 1
  • Overvoltage category: II
  • Material group: III
  • Rated current (40°C): 3 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Au (gold)
  • Material of contact body: PA
  • Material of housing: PA
Colour Black
Contact Finish Gold plated
Contact Termination Solder
Pin/Socket Pin
Type Snap-in, Subminiature, Cable Mount
