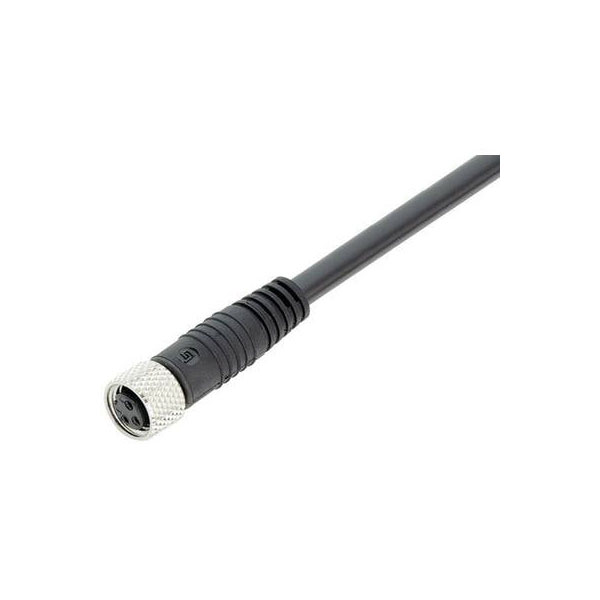

A female 4-pin black and silver sensor 0.25mm² cable mounted M8 screw connector with a moulded terminal and 5m PUR cable.
- Number of poles: 4
- Connector locking system: Screw
- Termination: crimp, overmoulded on cable
- Wire gauge (mm): 0,25 mm²
- Wire gauge (AWG): 24
- Cable lenth: 5 m
- Degree of protection: IP 67
- Mechanical operation: >100 mating cycles
- Upper temperature: +85 °C
- Lower temperature: -25 °C
- Rated voltage: 30 V
- Rated impulse voltage: 800 V
- Pollution degree: 3
- Overvoltage category: II
- Material group: II
- Rated current (40°C): 4 A
- Volume resistivity: ≤ 3 mΩ
- Material of contact: CuZn (brass)
- Contact plating: Au (gold)
- Material of contact body: PUR
- Material of housing: PUR
Cable data
- material housing: PUR
- insulation single lead: PVC
- single lead structure: 32 x 0,1
- cable sheath Ø: 4.5
- conductor resistance: 79,9Ω/Km
- temperature range cable movable c from / temperature range cable movable c to: -5 / 70
- temperature range cable fixed c from / temperature range cable fixed c to: -15 / 70
- bending radius cable fixed: min. 5 x D
- bending radius cable movable: min. 10 x D
| Contact material |
Brass |
| Contact Plating |
Gold |
| Current Rating |
4A |
| Gender |
Female |
| IP rating |
IP67 |
| Mounting Type |
Cable |
| Number of Ways |
4 |
| Termination Method |
Crimp |
| Voltage Rating (AC) |
30V |
| Wire Size |
4x 0.25mm² |
