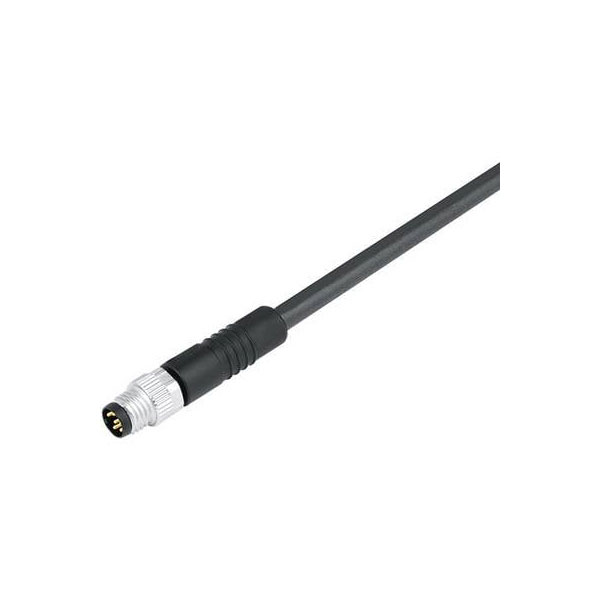

A male 8-pin black and silver sensor 0.25mm² cable mounted M8 screw connector with a moulded terminal and 2m PVC cable.
- Number of poles: 8
- Connector locking system: Screw
- Termination: crimp, overmoulded on cable
- Wire gauge (mm): 0,25 mm²
- Wire gauge (AWG): 24
- Cable lenth: 2 m
- Degree of protection: IP 67
- Mechanical operation: >100 mating cycles
- Upper temperature: +85 °C
- Lower temperature: -25 °C
- Rated voltage: 30 V
- Rated impulse voltage: 800 V
- Pollution degree: 3
- Overvoltage category: II
- Material group: II
- Rated current (40°C): 1,5 A
- Volume resistivity: ≤ 3 mΩ
- Material of contact: CuZn (brass)
- Contact plating: Au (gold)
- Material of contact body: PUR
- Material of housing: PUR
Cable data
- material housing: PVC
- insulation single lead: PVC
- single lead structure: 32 x 0,1
- cable sheath Ø: 6
- temperature range cable movable c from / temperature range cable movable c to: -25 / 80
- temperature range cable fixed c from / temperature range cable fixed c to: -50 / 80
- bending radius cable fixed: min. 5 x D
- bending radius cable movable: min. 10 x D
- approval: UL, CSA
| Contact material |
Brass |
| Contact Plating |
Gold |
| Current Rating |
1.5A |
| Gender |
Male |
| IP rating |
IP67 |
| Mounting Type |
Cable |
| Number of Ways |
8 |
| Termination Method |
Crimp |
| Voltage Rating (AC) |
30V |
| Wire Size |
8x 0.25mm² |
