Image Representative of Range
Binder 99-0079-102-04 Male 4-5mm 4 Pin Cable Mount Screw with Solder Terminal
Standard range
Order Code:
Brand:
Binder
MPN: 99-0079-102-04 EAN-13: 2050001613264 55-1140
- RoHS Compliant
- Country of Origin: Germany
- Free UK shipping available
- View Full Product Range (15)
| Qty | Was | Unit Price (Ex VAT) |
|---|---|---|
| 1+ | £8.79 | £7.19 |
| 10+ | £7.15 |
Price per unit Ex VAT

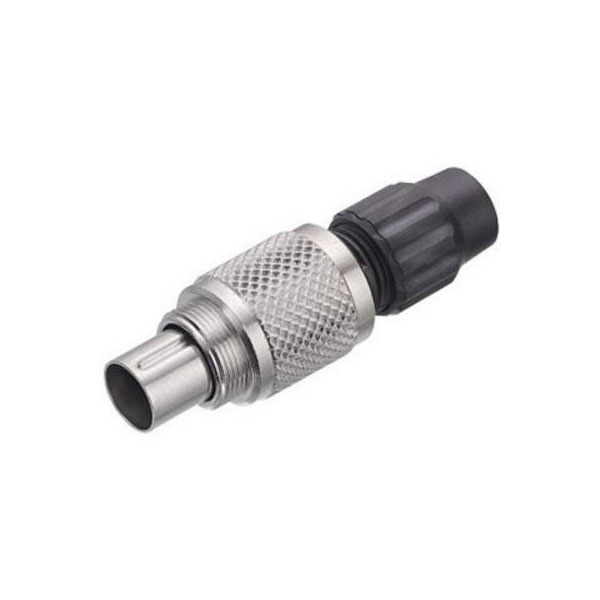

A 4-pin male black and silver subminiature cable mount M9 screw connector with a 4 to 5mm outlet and solder terminals.
- Number of poles: 4
- Connector locking system: Screw
- Termination: solder
- Wire gauge (mm): 0,25 mm²
- Wire gauge (AWG): 24
- Cable outlet: 4 - 5 mm
- Degree of protection: IP 40
- Mechanical operation: >500 mating cycles
- Upper temperature: +85 °C
- Lower temperature: -40 °C
- Rated voltage: 125 V
- Rated impulse voltage: 1500 V
- Pollution degree: 1
- Overvoltage category: II
- Material group: III
- Rated current (40°C): 3 A
- Volume resistivity: ≤ 3 mΩ
- Material of contact: CuZn (brass)
- Contact plating: Au (gold)
- Material of contact body: PA (UL 94 V-0)
- Material of housing: PA (UL 94 VH-B)
| Cable Diameter | 4 to 5mm |
|---|---|
| Contact material | Brass |
| Contact Plating | Gold |
| Current Rating | 3A |
| Gender | Male |
| IP rating | IP40 |
| Mounting Type | Cable |
| Number of Ways | 4 |
| Termination Method | Solder |
| Voltage Rating (AC) | 125V |
