Binder 99-9106-00-03 Female Cable Mount 3 Pin Black Code with Solder Terminal
Image Representative of Range

Binder 99-9106-00-03 Female Cable Mount 3 Pin Black Code with Solder Terminal

Binder
Extended range
Order Code:

55-0910

Brand: Binder MPN: 99-9106-00-03
Qty Unit Price (Ex VAT)
1+ £4.32
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 5 weeks

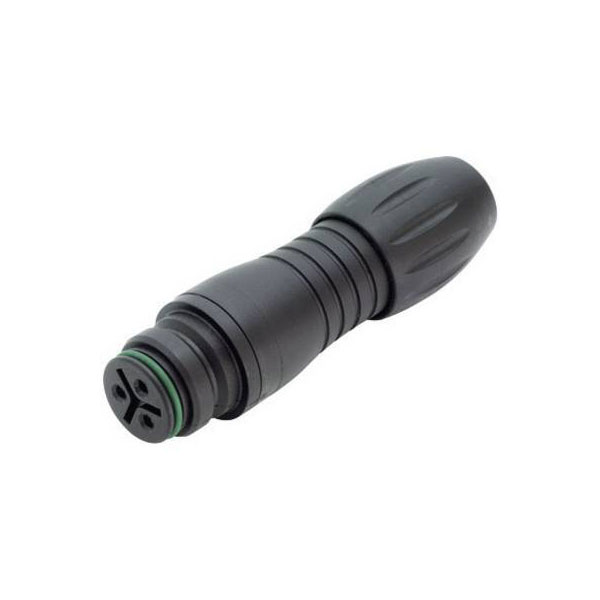

A female 3-pin IP67 miniature cable mount snap-in connector with a black body and solder termination.
  • Number of poles: 3
  • Connector locking system: Snap-in locking
  • Termination: solder
  • Wire gauge (mm): 0,75 mm²
  • Wire gauge (AWG): 20
  • Cable outlet: 4 - 6 mm
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 250 V
  • Rated impulse voltage: 2500 V
  • Pollution degree: 2
  • Overvoltage category: II
  • Material group: II
  • Rated current (40°C): 7 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Au (gold)
  • Material of contact body: PA (UL 94 V-0)
  • Material of housing: PA (UL 94 V-0)
Colour Black
Contact Finish Gold plated
Contact Termination Solder
Pin/Socket Socket
Type Snap-in, Miniature, Cable Mount
