Binder 99-9128-00-08 Female Panel Mount 8 Pin with Solder Terminal

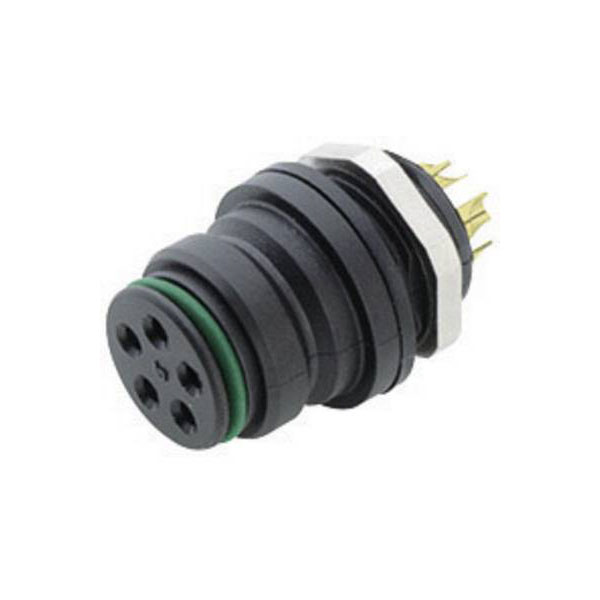

Image Representative of Range

Binder 99-9128-00-08 Female Panel Mount 8 Pin with Solder Terminal

Standard range
Order Code:

55-1213

  Copy to clipboard
( Write a review )
Brand: Binder  Copy to clipboard MPN: 99-9128-00-08 Copy to clipboard PCB Symbol, Footprint or 3D Model
 Report an error
Qty Unit Price (Ex VAT)
1+ £9.47
10+ £8.90
50+ £8.52

Add to Quote
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Standard factory lead time 7 days
16 available to back orderBack-order availability date - 06/11/2024
A female 8-pin IP67 miniature panel mount snap-in connector with a black body and solder termination.
  • Number of poles: 8
  • Connector locking system: Snap-in locking
  • Termination: solder
  • Wire gauge (mm): 0,25 mm²
  • Wire gauge (AWG): 24
  • Degree of protection: IP 67
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -25 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 2
  • Overvoltage category: II
  • Material group: II
  • Rated current (40°C): 2 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuSn (bronze)
  • Contact plating: Au (gold)
  • Material of contact body: PA (UL 94 V-0)
  • Material of housing: PA (UL 94 V-0)

For the Front panel assembly, the Adapter needed is 720-08-2433-000-001 or 720-08-2434-000-001.

Contact Finish Gold plated
Contact Termination Solder
Pin/Socket Socket
Type Snap-in Miniature, Panel Mount
