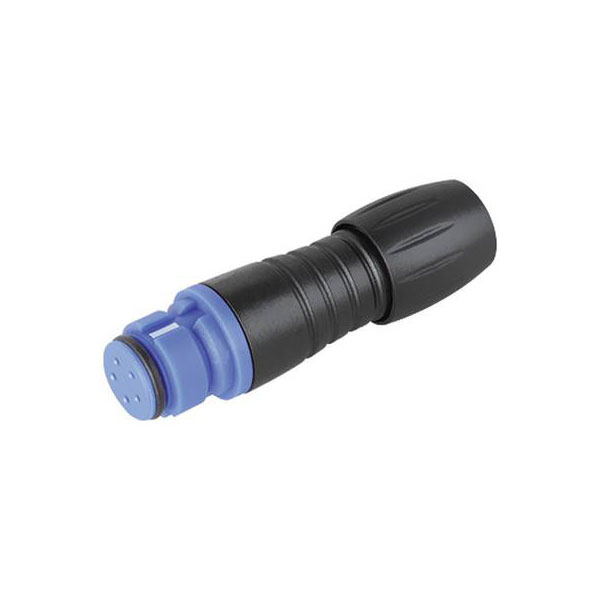

A 5-pin blue female subminiature cable mount snap-in connector with solder termination.
- Number of poles: 5
- Wire gauge (mm): 0,25 mm²
- Wire gauge (AWG): 24
- Cable outlet: 3 - 5 mm
- Degree of protection: IP 67
- Mechanical operation: >500 mating cycles
- Upper temperature: +85 °C
- Lower temperature: -40 °C
- Rated voltage: 63 V
- Rated impulse voltage: 800 V
- Pollution degree: 2
- Overvoltage category: II
- Material group: II
- Rated current (40°C): 2 A
- Volume resistivity: ≤ 3 mΩ
- Material of contact: CuSn (bronze)
- Contact plating: Au (gold)
- Material of contact body: PA (UL 94 V-0)
- Material of housing: PA (UL 94 V-0)
Contact Material | CuSn |
Contact Plating | Gold |
Current Rating | 2A |
Gender | Female |
IP Rating | IP67 |
Mounting Type | Cable |
Number of Ways | 5 |
Termination Method | Solder |
Voltage Rating (AC) | 63V |
---|
