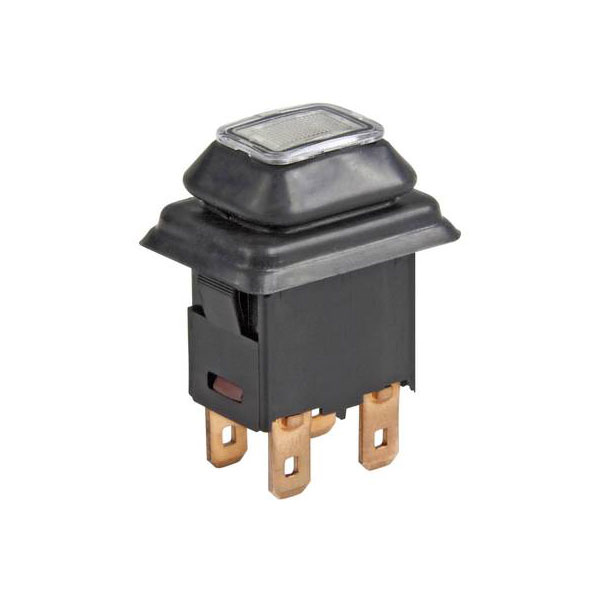

Marquardt 1683.8101 16A 250V AC IP65 Pushbutton SPST On-Off Black Faston

A pushbutton from Marquardt with a tried-and-tested double lifting contact system and high switching capacity.

• Approvals:: ENEC UL CSA
• Casing/button colour: Black
• Connection: CEE plug 4.8mm
• Contact material: Ag (Silver)
• Contact type: 1 breaker
• L x W 21 x 15mm
• Front panel cut-out: 19.8 x 12.9mm
• Functions: latch
• Lighting type: none
• Protection type: IP65
• Recess depth: 18.8mm
• Switch features: protuding
• Switch position: 1 x On/Off
• Switch type: Pushbutton switch
• Switching current (max.): 16A
• Switching voltage: 250V AC
• Manufacturer's part 1683.8101

In the description of switching position, the value in brackets is intended to show the switch function.

Type	Push-button
Action	Off / on
Button Colour	Black
Contact Configuration	SPST
Illuminated	No
Max. Current	16A
