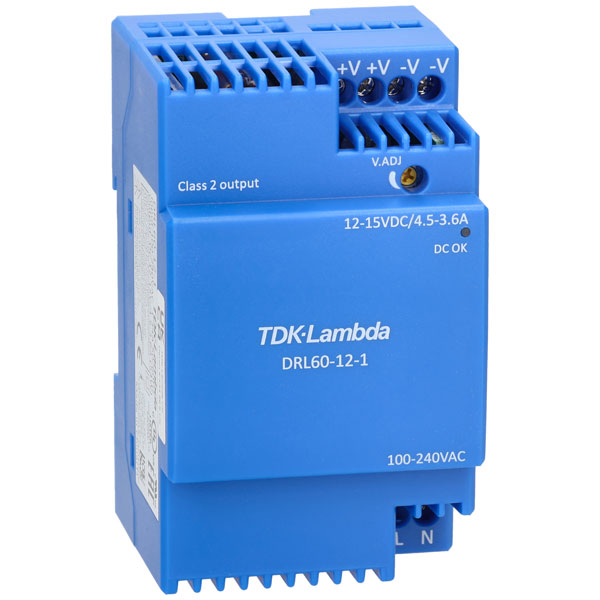

The TDK-Lambda DRL60-12-1 is a Low Profile DIN Rail Power Supply operating at 12V, 4.5A. The low profile DRL60-12-1 DIN rail power supply provides a reliable solution for many industrial, building automation, renewable energy, and test and measurement applications. The low profile design makes it particularly suitable for cabinets or areas where space is restricted.
With double insulation and safety Class II input, an earth connection is not required. The NEC Class 2 compliant output, in accordance with UL 1310, allows operation where output currents are to be limited under fault conditions.
- Efficiency: 87%
- Output voltage: 12V
- Output current: 4.5A
- Max power: 54W
- UL1310 Class 2 Compliant
- Low No Load Consumption
- Long Field Life
- No Earth Required
- Dimensions: 54(W) x 91(H) x 55.6(D)mm
- Temperature range: -20°C to +71°C
- Type: Low Profile DIN rail mount power supply
- Manufacturer's part: TDK-Lambda DRL60-12-1
| Type |
Power Supply, DIN Rail mounting |
| Dimensions (H x W x D) |
91 x 54 x 55.6mm |
| No. of Outputs |
1 |
| Open Frame/DIN Rail |
DIN rail |
| Operating Temperature |
-20 to 71°C |
| Output Current Max. |
4.5A |
| Output Voltage Max. |
15V |
| Output Voltage Min. |
12V |
| Power Rating |
54W |
| Supply Voltage Range |
85 to 264V AC |
| Weight |
200g |
