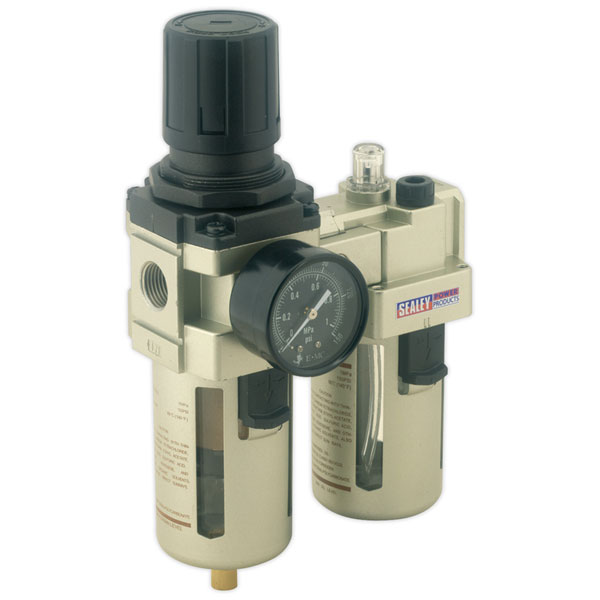

Suitable for industrial workshop air supply set-ups where high volume applications are required. Regulator assembly features locking control knob for presetting air pressure. State of the art easy-to-read pressure gauge. Manual drain facility with female 1/8"BSP outlet. Lubricator includes oil/air mix control and sight glass. Filter and lubricator are both fitted with metal bowl cages for protection. Supplied with wall bracket.
Model No SA206 Inlet Size: 1/2"BSP Maximum Air Input: 150psi Maximum Air Output: 125psi Maximum Airflow: 105cfm* Nett Weight: 1.88Kg Note: *Supply Pressure of 100psi Outlet Size: 1/2"BSP
Type
Filter/reg/lubricator
Lifetime Warranty
No
Max. Airflow
2973l/min
Max. Outlet Pressure
125psi
Max. Supply Pressure
150psi
Port Size
1/2in
