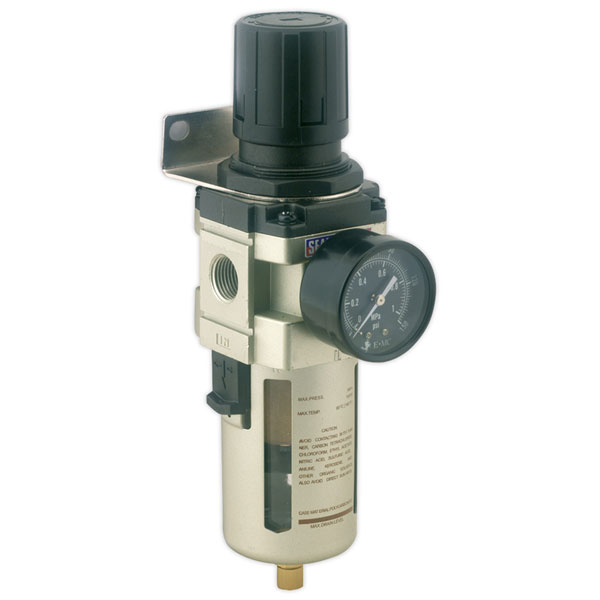

Suitable for industrial workshop air supply set-ups where high volume applications are required. Regulator assembly features locking control knob for presetting air pressure and pressure gauge. Filter is fitted with polycarbonate bowl, manual drain control and metal bowl cage for protection. Drain valve has female 1/8"BSP outlet. Supplied with wall bracket.
Model No SA206FR Inlet Size: 1/2"BSP Maximum Air Input: 150psi Maximum Air Output: 125psi Maximum Airflow: 140cfm* Nett Weight: 1.34Kg Note: *Supply Pressure of 100psi Outlet Size: 1/2"BSP
Type
Filter/regulator
Lifetime Warranty
No
Max. Airflow
3964l/min
Max. Outlet Pressure
125psi
Max. Supply Pressure
150psi
Port Size
1/2in
