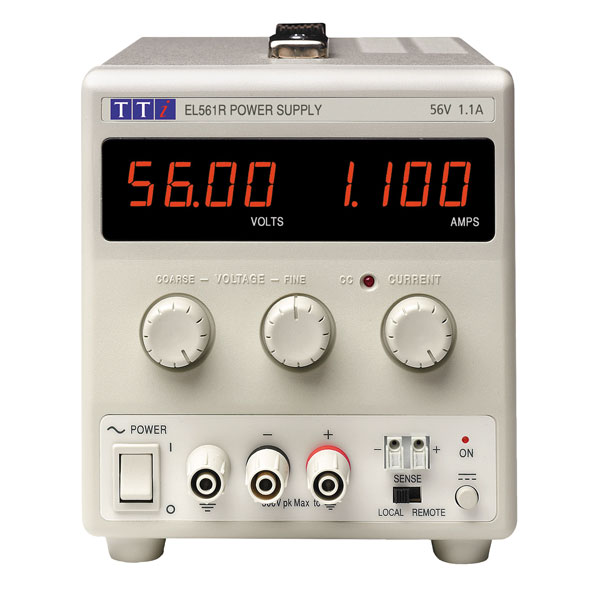

This single output PSU from the Aim-TTi EL series has been designed to meet the need for a compact power supply that provides good performance at a low price.
- Power rating 60W
- Output current 1.1A
- Voltage 0 to 56V
- Compact design takes up minimal bench space
- Linear regulation
- Quiet operation
- Excellent line and load regulation
- Low noise
- Good transient response
- Constant voltage and constant current modes with automatic crossover
- Coarse and fine voltage control
- Logarithmic current control enabling low currents to be accurately set
- Seperate digital voltmeter and ammeter for each main output
- Current limit settings are displayed when output switch is off, enabling verification of settings
- Bright LED display with 14mm high characters and an update rate of four per second
- All outputs short circuit proof and protected against external voltages and reverse currents
- Complies with EN61010-1 and EN61326
Dimensions | (L x W x H) 195 x 140 x 160mm |
Number of Outputs | 1 |
Output Connectors | 4mm binding post terminals |
Output Current Max | 1.1A |
Output Current Min | N/A |
Output Voltage Max | 56V |
Output Voltage Min | 0V |
Power Rating | 60W |
Programmable? | No |
Supply Voltage Range (AC) | 115 to 230V |
Temperature Range | +5 to +40°C |
---|
