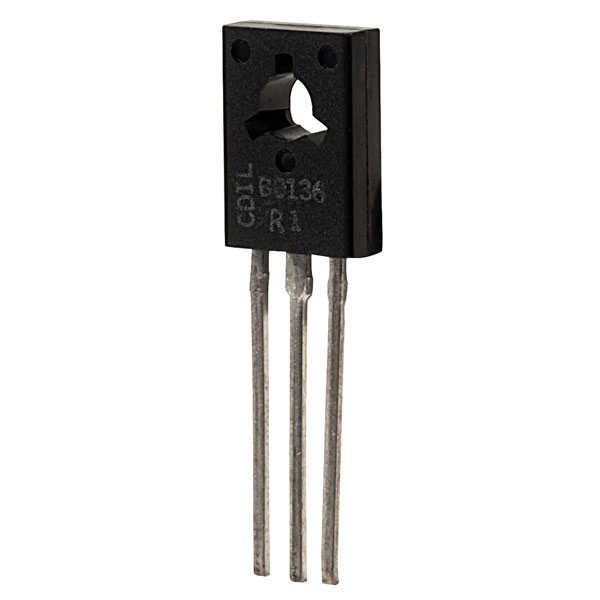

A high power PNP transistor suitable for medium power linear and switching applications.
- PNP Polarity
- 45V Collector-Emitter breakdown voltage
- 45V Collector-Base breakdown voltage
- 1.5A Collector current
- 12.5W Power
- 250 DC Current gain
- TO-126 Case
| Type |
BD136 |
| Case |
TO-126 |
| Collector Current Cont. |
1.5A |
| Collector-Emitter Voltage |
45V |
| DC Current Gain (max.) |
250 |
| Operating Temperature |
150°C |
| Power Dissipation |
12.5W |
