Image Representative of Range
DSG Canusa 3290090503 Blue Heat Shrink Tubing 3:1 9.5mm
Standard range
Order Code:
Brand:
DSG-Canusa
MPN: 3290090503 EAN-13: 2050000171529 63-0189
- RoHS Compliant
- Country of Origin:
- Free UK shipping available
- View Full Product Range (11)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £1.02 |
Price per unit Ex VAT

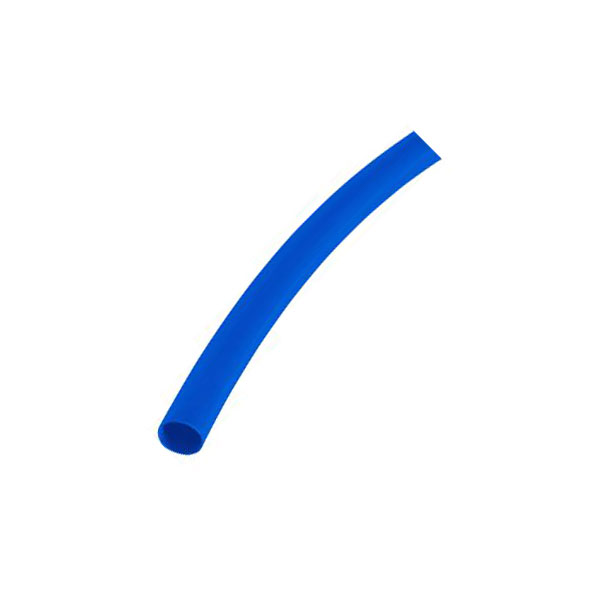

Blue heat shrink tubing from DSG Canusa with a shrink ratio of 3:1.
This heat shrink will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of heat shrink will result in a single 7-metre heat shrink being supplied, not 7 one-metre lengths.
- Supplied diameter 9.5mm
- Post-shrinkage diameter 3.1mm
- Shrink ratio 3:1
- Colour: blue
- Shrinking temperature +90 to +200°C
- Breakdown voltage 24KV/mm to VDE 0303 Part 2
- Elongation at tear 500% min according to IEC 60684-2
- Flame-resistant according to UL 224
- Tensile strength 17MPa to IEC 60684-2
- Manufacturer's part 3290090503
This heat shrink will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of heat shrink will result in a single 7-metre heat shrink being supplied, not 7 one-metre lengths.
| Colour | Blue |
|---|---|
| Length | 1000mm |
| Ratio | 3:1 |
| Shrunk Diameter | 3mm |
| Supplied Diameter | 9.5mm |
