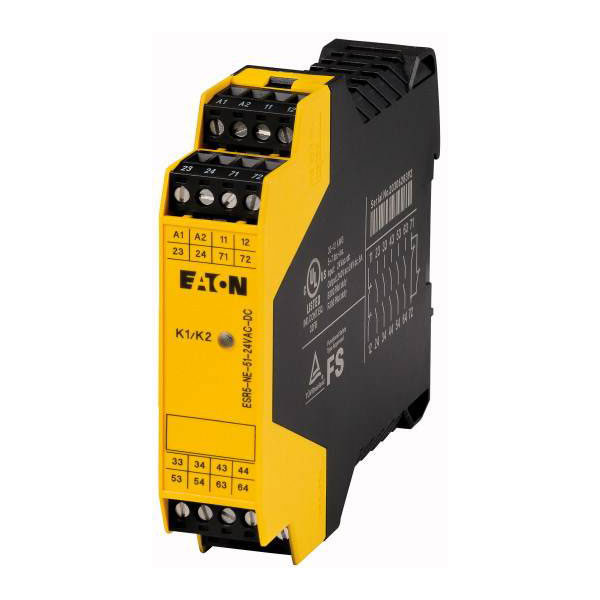

Eaton 118707 ESR5-NE-51 Safety relay 24VAC/DC 5 contact paths PL e
Order Code:
Brand:
Eaton
MPN: 118707 02-5694
- RoHS Compliant
- Country of Origin: Germany
Discontinued
The Eaton ESR5-NE-51-24VAC-DC is a safety relay designed for use in personal safety equipment and workplace safety systems. Measuring 22.5 x 99 x 114.5 mm, this device ensures industrial plant and staff protection through its reliable access control capabilities. Ideal for enhancing safety in industrial settings, it provides comprehensive solutions for safeguarding personnel.
| Type | Safety relay |
|---|---|
| Connector | Screw-fit |
| Control voltage 1 | 24-24V |
| Control voltage 2 | 24-24V |
| Depth | 114.5mm |
| Dim | (W x H x D) 22.5 x 99 x 114.5 mm |
| Evaluation inputs | 1-channel |
| Height | 99mm |
| IP rating | IP20 |
| Max. operating voltage | 230V |
| Min. operating voltage | 24V |
| Misc Attribute | ESR5-NE-51-24VAC-DC |
| Model | Expansion device |
| Number of outputs, safety related, delayed, semiconductors | 0 |
| Number of outputs, safety related, delayed, with contact | 0 |
| Number of outputs, safety related, undelayed, semiconductors | 0 |
| Number of outputs, safety related, undelayed, with contact | 5 |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 0 |
| Number of outputs, signalling function, undelayed, with contact | 1 |
| Operating temperature (max.) | +55°C |
| Operating temperature (min.) | -20°C |
| Operating voltage | 24 - 230 V |
| Operating voltage AC 50 Hz | 24-24V |
| Operating voltage AC 60 Hz | 24-24V |
| Operating voltage DC | 24-24V |
| Performance level according to EN ISO 13849-1 | Level e |
| Power Consumption | 2.2W |
| Rated switch current | 4A |
| Release-delay | 0-0s |
| Response time | 20ms |
| SIL according to IEC 61508 | 3 |
| Stop category according to IEC 60204 | 0 |
| Suitable for monitoring of emergency-stop circuits | TRUE |
| Suitable for monitoring of magnetic switches | FALSE |
| Suitable for monitoring of optoelectronic protection equipment | FALSE |
| Suitable for monitoring of position switches | TRUE |
| Suitable for monitoring of proximity switches | FALSE |
| Suitable for monitoring of tactile sensors | FALSE |
| Suitable for monitoring of valves | FALSE |
| Suitable for rail mounting | TRUE |
| Supply voltage AC 50 Hz | 24-24V |
| Supply voltage AC 60 Hz | 24-24V |
| Supply voltage DC | 24-24V |
| Switching current (max.) | 4A |
| Type of control voltage 1 | AC/DC |
| Type of control voltage 2 | AC/DC |
| Type of electric connection | Screw connection |
| Type of safety according to IEC 61496-1 | None |
| Voltage type (operating voltage) | AC/DC |
| Voltage type (supply voltage) | AC/DC |
| Width | 22.5mm |
| With approval according to UL | TRUE |
| With approval for BG BIA | FALSE |
| With approval for TÜV | TRUE |
| With detachable clamps | TRUE |
| With feedback circuit | TRUE |
| With muting function | FALSE |
| With start input | FALSE |
