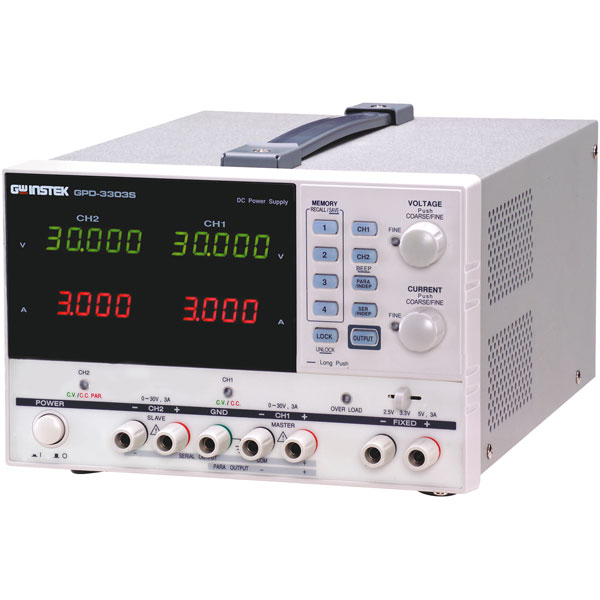

The GW Instek GPD-3303S contains the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing. The GW Instek GPD-3303S offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control.
Additionally, the GW Instek GPD-3303S provides easy operation, a wide selection of panel setting and operation, a wide selection of panel settings. All these features make the GW Instek GPD-3303S the most promising new comer in the power supply market.
- 2/3/4 Independent isolated output
- 4 LED Display sets: 3 digits after decimal point
- Minimum resolution: 1mV/1mA
- Digital panel control (rotary encoder switch, rubber key with indicator)
- User-friendly operation, coarse/fine volume control
- 4 Sets save/recall
- Key-lock
- Output on/off
- Tracking series and parallel mode
- Smart cooling fan achieving low noise
- USB Standard interface
- PC Software and USB driver
- Labview driver
- Manufacturers part no. GW Instek GPD-3303S
| Dimensions |
(L x W x H) 265 x 210 x 130mm |
| Number of Outputs |
3 |
| Output Connectors |
4mm binding post terminals |
| Output Current Max |
3A |
| Output Current Min |
0A |
| Output Voltage Max |
30V |
| Output Voltage Min |
0V |
| Power Rating |
195W |
| Programmable? |
Yes |
| Supply Voltage Range (AC) |
100 to 230V |
| Temperature Range |
0 to +40°C |
