Phoenix Contact Modular Adaptors 609411
Brand: Phoenix ContactThe parts from Phoenix Contact are a collection of advanced temperature transducers and transmitters that provide programmable and precise measurement solutions for various temperature sensing applications.
Image | Product | Buy Qty | Pricing (Ex VAT) | Connection | Current consumption | Dim | Height | Input signal | IP rating | Length | Load | Manufacturer part # | Max. ambient temperature | Misc Attribute | Min. ambient temperature | Output signal | Supply Voltage | Setting | Width | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|

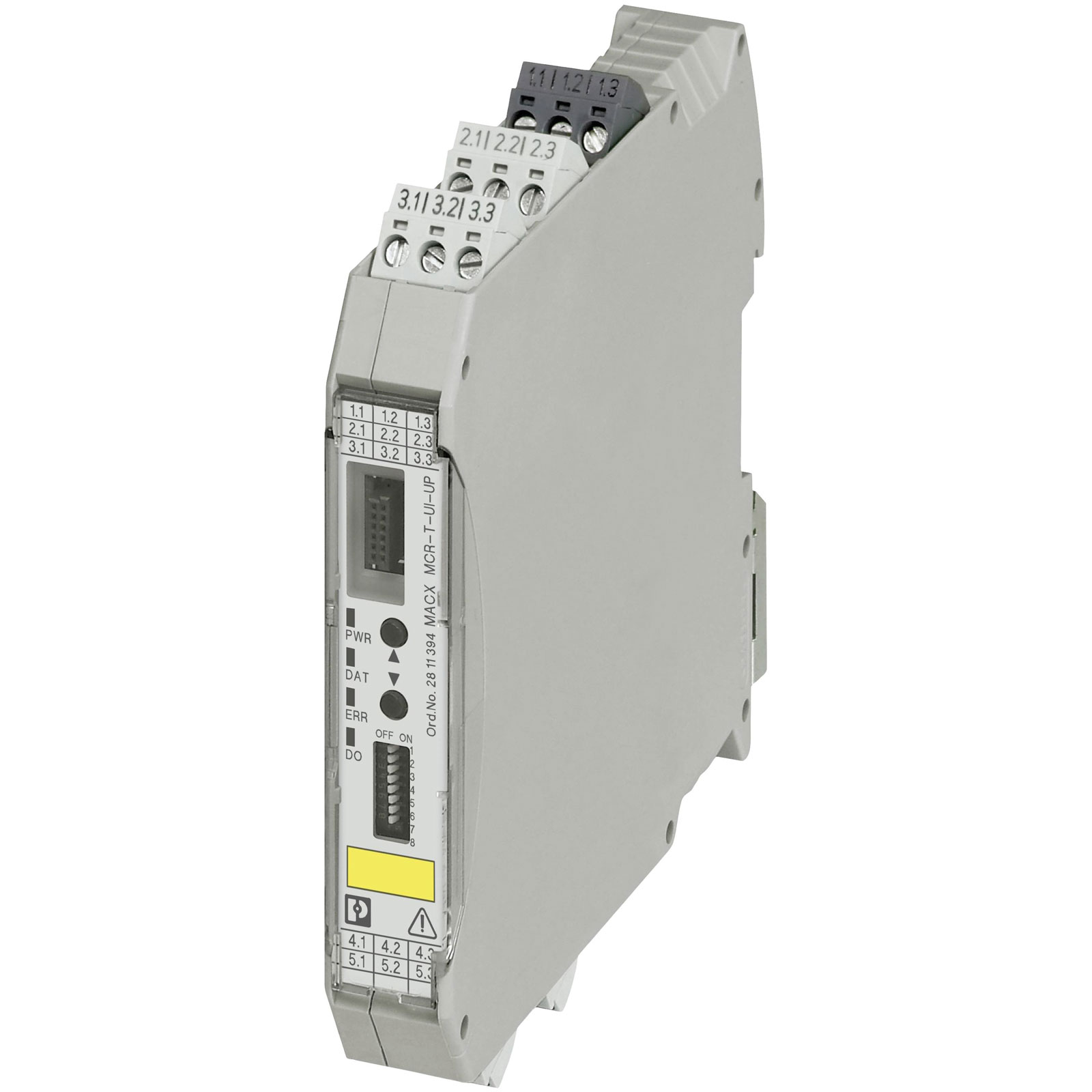

| Screws | <21 mA at 24 V/DC) | (L x W x H) 99 x 17.5 x 114.5 mm | 114.5mm | -1000 - 1000 V | 99mm | ≥10 kΩ /< 600 Ω (with 20 mA) | 2811394 | MACX MCR-T-UI-UP | 24 - 230 V AC/DC | 17.5mm | |||||||||
 |
|
| Screws | 32 mA at 24 V/DC) 63 mA at 12 V/DC) | (L x W x H) 120.5 x 6.2 x 110.5 mm | 110.5mm | Range: 0 - 4000 Ω | IP20 | 120.5mm | Output load current output: ≤ 600 Ω (with 20 mA) | 2902049 | +85°C | MINI MCR-2-RTD-UI | -40°C | DIP switch 0-5 V, 1-5 V, 0-10V, 10-0 V, 0-20mA, 4-20mA,20-0mA, 20-4 mA · Software: 0-10.5 V, 0-21mA | 9,6 - 30V DC | DIP switches or software | 6.2mm | ||||
 |
|
| Screws | 32.7 mA (at 24 V/DC) 66.8 mA (at 12 V/DC) | (L x W x H) 120.5 x 6.2 x 110.5 mm | 110.5mm | IP20 | 120.5mm | Output load current output: ≤ 600 Ω (with 20 mA) | 2902055 | +85°C | MINI MCR-2-TC-UI | -40°C | DIP switch 0-5 V, 1-5 V, 0-10V, 10-0 V, 0-20mA, 4-20mA,20-0mA, 20-4 mA · Software: 0-10.5 V, 0-21mA | 9,6 - 30V DC | DIP switches or software | 6.2mm | |||||
 |
|
| Push-In | 32.7 mA (at 24 V/DC) 66.8 mA (at 12 V/DC) | (L x W x H) 120.5 x 6.2 x 110.5 mm | 110.5mm | IP20 | 120.5mm | Output load current output: ≤ 600 Ω (with 20 mA) | 2905249 | +85°C | MINI MCR-2-TC-UI-PT | -40°C | DIP switch 0-5 V, 1-5 V, 0-10V, 10-0 V, 0-20mA, 4-20mA,20-0mA, 20-4 mA · Software: 0-10.5 V, 0-21mA | 9,6 - 30V DC | DIP switches or software | 6.2mm |
