R-TECH 524582 19mm Vandal Resistant Switch36VDC 2A Flat Nickel Screw
Standard range
Order Code:
Brand:
R-TECH
MPN: 524582 EAN-13: 5053556005949 52-4582
- RoHS Compliant
- Country of Origin: China
- Free UK shipping available
- View Full Product Range (6)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £4.77 |
| 10+ | £4.23 |
| 25+ | £3.92 |
| 50+ | £3.79 |
| 100+ | £3.65 |
| 250+ | £3.54 |
Price per unit Ex VAT

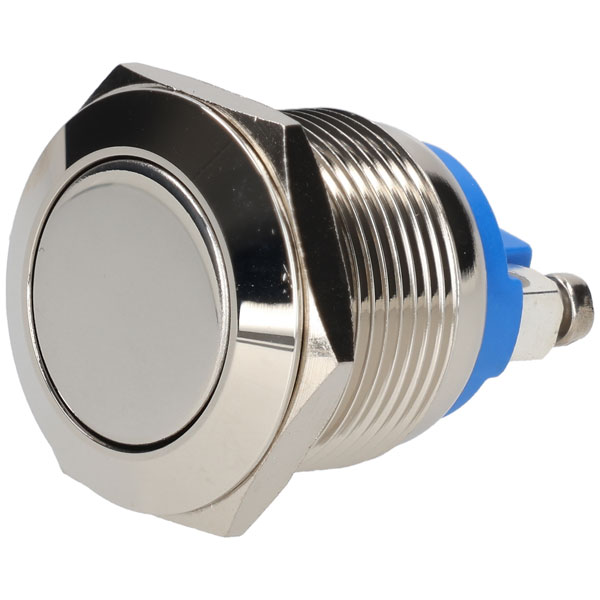

An IP65 rated nickel-plated vandal resistant push-button switch with a flat button and screw terminals.
- Momentary operation
- SPST, 1x Off/(On)
- Switching current: 2A
- Switching voltage: 36V DC
- Body material: Brass
- Nickel-plated finish
- Screw terminals
- Actuating force: 5.5N
- Contact material: Silver alloy
- Contact resistance: ≤50mΩ
- Dielectric strength: 2000V AC
- Electrical life: 200,000 cycles
- Front panel thickness: 1 to 8mm
- Illumination: No
- Installation diameter: 19mm
- Insulation resistance: ≥1000MΩ
- Mechanical life: 1,000,000 cycles
- Protection type: IP65
- Temperature range: -20 to +55°C
| Type | Push-button |
|---|---|
| Action | Off / (on) |
| Contact Configuration | SPST |
| Illumination Colour(s) | N/A |
| Illumination Type | None |
| Max. Current | 2A |
