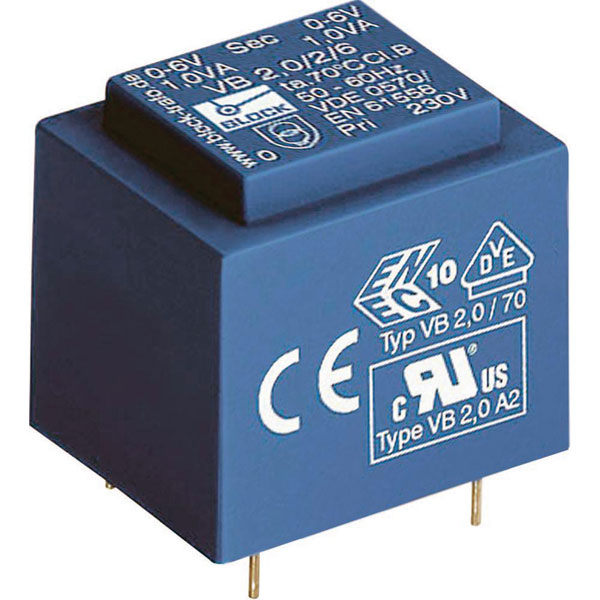

Block VB 1,0/2/12 - PCB Mount Transformer 1VA 2x12V 2 x 83mA
Standard range
Order Code:
Brand:
Block
MPN: VB 1,0/2/12 EAN-13: 4016138516487 51-5469
- RoHS Compliant
- Country of Origin:
- Free UK shipping available
- View Full Product Range (2)
Quickly find another product in this range by Secondary Voltage:
2 x 12V 2 x 6V
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £4.52 |
Price per unit Ex VAT
The Block VB PCB Mount Transformer 1VA, 2 x 12V, 2 x 83mA has been designed for high ambient temperatures and is unconditionally short-circuit proof. This high quality transformer is also equipped with double output voltage for series or parallel connection, while boasting permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDensiFill resin encapsulation.
VB polar square wave voltage
Primary pin assignment: Pin 1-2
Secondary pin assignment 1: Pin 4-3
Secondary pin assignment 2: Pin 6-5
- Minimum size in case of high power
- Coil shell in 2-chamber technology
- Self-extinguishing potting material
Dimensional drawing see technical data sheet.
| Power | 1VA |
|---|---|
| Primary Voltage | 230V |
| Secondary Voltage | 2 x 12V |
| Weight | 0.07kg |
